NSN 3110-00-684-2789
Part Details | ROD END ROLLER BEARING
3110-00-684-2789 A special single or multiple-row roller bearing, rigid or self-aligning, and constructed with either inside threaded, plain hollow, maile threaded, or solid shank.
Alternate Parts: YS118MILG3278, YS118, SPS510A4, SPS5-10A-4, SPS510A, SPS5-10A, SDS510A, SDS5-10A, BACB10C170H, BACB10C170H, 3110-00-684-2789, 00-684-2789, 3110006842789, 006842789
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-684-2789 | 00050 ( BEARING, ROLLER, ROD END ) |
REFERENCE DRAWINGS & PICTURES

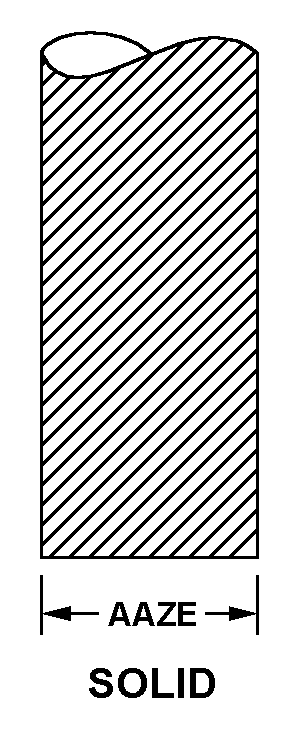

SOLID
SINGLE ROW, CONCAVE ROLLERS
Cross Reference | NSN 3110-00-684-2789
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| YS118MILG3278 | 77896 | REXNORD INDUSTRIES, LLCDIV BEARING OPERATION |
| YS118 | 77896 | REXNORD INDUSTRIES, LLCDIV BEARING OPERATION |
| SPS5-10A-4 | 77896 | REXNORD INDUSTRIES, LLCDIV BEARING OPERATION |
| SPS5-10A | 77896 | REXNORD INDUSTRIES, LLCDIV BEARING OPERATION |
| SDS5-10A | 77896 | REXNORD INDUSTRIES, LLCDIV BEARING OPERATION |
| BACB10C170H | 77896 | REXNORD INDUSTRIES, LLCDIV BEARING OPERATION |
| BACB10C170H | 81205 | THE BOEING COMPANYDBA BOEING |
Technical Data | NSN 3110-00-684-2789
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE ROW, CONCAVE ROLLERS |
| SELF-ALIGNMENT ANGLE | 10.00 DEGREES NOMINAL |
| OVERALL LENGTH | 3.0800 INCHES NOMINAL |
| BORE DIAMETER | 0.3125 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.2800 INCHES NOMINAL |
| OUTER RING WIDTH | 0.4000 INCHES NOMINAL |
| INNER RING WIDTH | 0.8700 INCHES NOMINAL |
| LENGTH FROM BORE CENTER TO SHANK END | 2.4400 INCHES NOMINAL |
| SHANK STYLE | SOLID |
| SHANK DIAMETER | 0.6250 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| SHIELD QUANTITY | 2 |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| SPECIAL FEATURES | SHAFER G-3 GREASE FITTING LOCATED 40 DEG FROM VERTICAL CENTERLINE,SURFACE FINISH OF SHANK 40 MICROINCHES RMS |
