NSN 3110-00-689-6849
Part Details | ANNULAR BALL BEARING
3110-00-689-6849 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 358245, Q20202US5593J99YH, 358245, 358245, 7202VAB, 3110-00-689-6849, 00-689-6849, 3110006896849, 006896849
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-689-6849 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

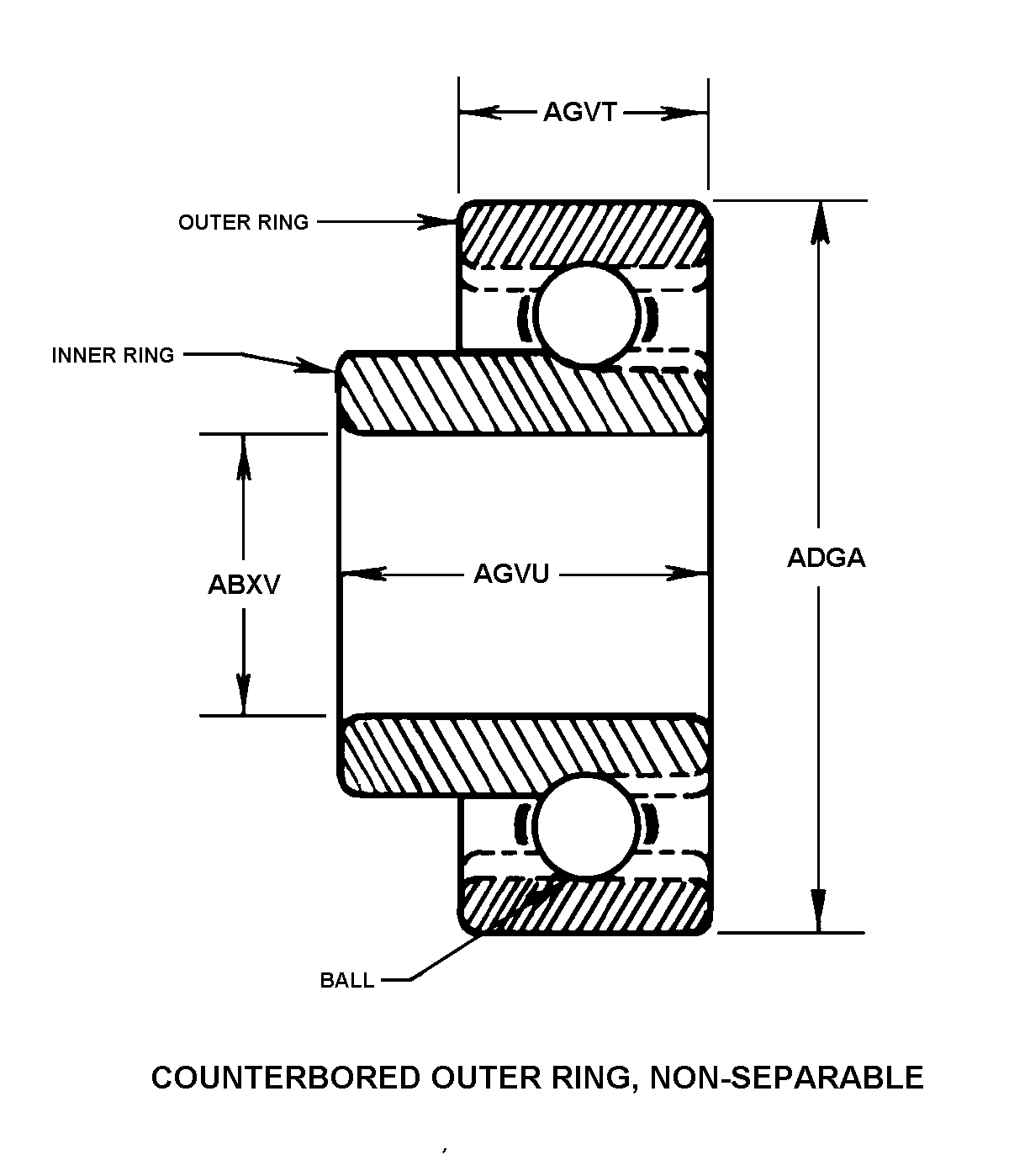

COUNTERBORED OUTER RING, NON-SEPARABLE
Cross Reference | NSN 3110-00-689-6849
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 358245 | 72599 | ALLIEDSIGNAL INCDBA ALLIED-SIGNAL AEROSPACE CO |
| Q20202US5593J99YH | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| 358245 | 99193 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 358245 | 70210 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 7202VAB | 52676 | SKF USA INC. |
Technical Data | NSN 3110-00-689-6849
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | COUNTERBORED OUTER RING, NON-SEPARABLE |
| BORE DIAMETER | 15.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 35.0 MILLIMETERS NOMINAL |
| OUTER RING WIDTH | 0.3300 INCHES NOMINAL |
| INNER RING WIDTH | 0.4250 INCHES NOMINAL |
| LUBRICATION MATERIAL | OIL |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-L-7808 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOAD DIRECTION | ANGULAR |
| INTERNAL CLEARANCE | R0.0005 INCHES MINIMUM AND R0.0010 INCHES MAXIMUM |
| CONTACT ANGLE | 25.0 DEGREES MAXIMUM |
| SPECIAL FEATURES | INTERNAL CLEARANCE MEASURED UNDER 1 LB GAGE LOAD |
