NSN 3110-00-697-8621
Part Details | OUTER BEARING RING
3110-00-697-8621 The outer component of a ball or roller bearing which provides a contact surface for the rolling elements of an antifriction bearing.
Alternate Parts: 148753, 3110-00-697-8621, 00-697-8621, 3110006978621, 006978621
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-697-8621 | 00029 ( RING, BEARING, OUTER ) |

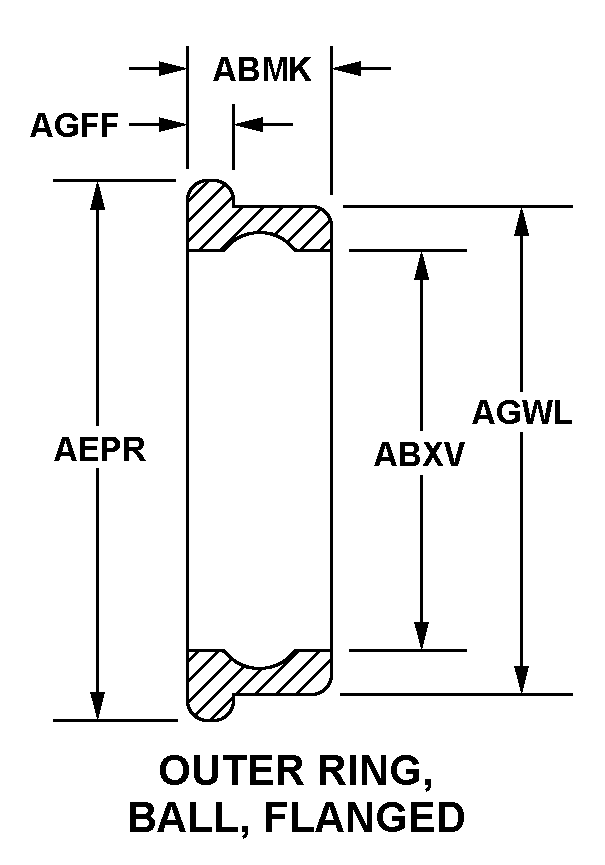

REFERENCE DRAWINGS & PICTURES
OUTER RING, BALL, FLANGED
Cross Reference | NSN 3110-00-697-8621
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 148753 | 62983 | EATON AEROSPACE LLC |
Technical Data | NSN 3110-00-697-8621
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OUTER RING, BALL, FLANGED |
| OVERALL WIDTH | 0.1990 INCHES MINIMUM AND 0.2050 INCHES MAXIMUM |
| BORE DIAMETER | 0.9290 INCHES MINIMUM AND 0.9430 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 1.2183 INCHES MINIMUM AND 1.2185 INCHES MAXIMUM |
| FLANGE WIDTH | 0.1370 INCHES MINIMUM AND 0.1430 INCHES MAXIMUM |
| SMALLEST OUTSIDE DIAMETER | 1.0850 INCHES MINIMUM AND 1.0920 INCHES MAXIMUM |
| SURFACE FINISH | GROUND |
