NSN 3110-00-701-3503
Part Details | BEARING ROLLER RETAINER
3110-00-701-3503 A frame or inclosure which spaces and retains the rolling elements of a BEARING, ROLLER (as modified).
Alternate Parts: 2300094141040.01.0, 2300094-141040.01.0, 7013503, 3110-00-701-3503, 00-701-3503, 3110007013503, 007013503
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-701-3503 | 00033 ( RETAINER, ROLLER, BEARING ) |
REFERENCE DRAWINGS & PICTURES

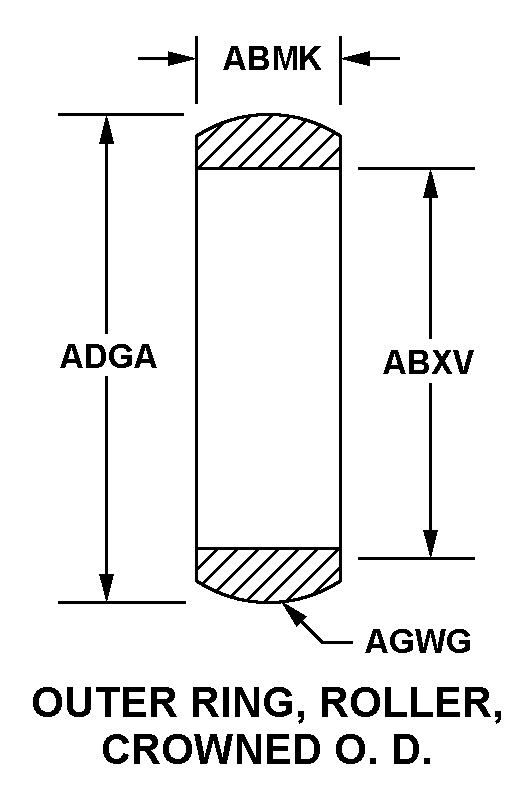

OUTER RING, ROLLER, CROWNED OD
Cross Reference | NSN 3110-00-701-3503
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2300094-141040.01.0 | C2311 | BUNDESAMT FUER AUSRUESTUNG,INFORMATIONSTECHNIK UND NUTZUNG DER |
| 7013503 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 3110-00-701-3503
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OUTER RING, ROLLER, CROWNED OD |
| OVERALL WIDTH | 1.1250 INCHES NOMINAL |
| BORE DIAMETER | 1.4995 INCHES MINIMUM AND 1.5005 INCHES MAXIMUM |
| RETAINER FABRICATION METHOD | MACHINED |
| RETAINER PIECE QUANTITY | 1 |
