NSN 3110-00-708-7699
Part Details | BEARING ADAPTER SLEEVE
3110-00-708-7699 An adapter sleeve used to mount and locate an antifriction bearing on a straight shaft permitting wide tolerances of shaft diameter and making it unnecessary to heat the bearing or use a press for mounting.
Alternate Parts: SNW13X2 14, SNW13X2 1-4, 3110-00-708-7699, 00-708-7699, 3110007087699, 007087699
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | FEB 14, 1968 | 00-708-7699 | 00025 ( ADAPTER SLEEVE, BEARING ) |
REFERENCE DRAWINGS & PICTURES

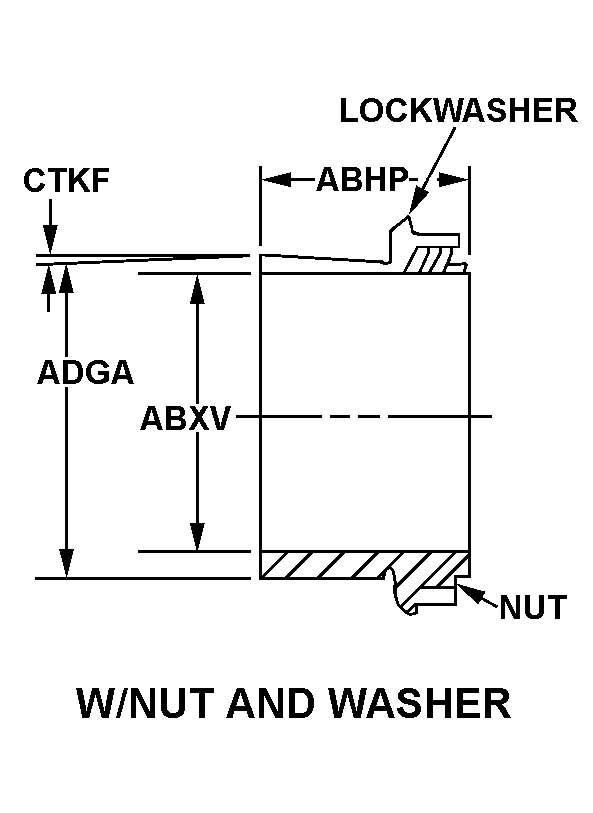

W/NUT AND WASHER
Cross Reference | NSN 3110-00-708-7699
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SNW13X2 1-4 | 52676 | SKF USA INC. |
Technical Data | NSN 3110-00-708-7699
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | W/NUT AND WASHER |
| TAPER | 1.0000 NOMINAL |
| OVERALL LENGTH | 2.0937 INCHES NOMINAL |
| BORE DIAMETER | 2.2500 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 3.3750 INCHES NOMINAL |
| SPECIAL FEATURES | OD TAPERED 1 IN. PER FT ALSO ADAPTER NUT AND WASHER ON SMALL TAPERED OD SIDE |
