NSN 3110-00-713-3489
Part Details | THRUST BALL BEARING
3110-00-713-3489 An antifriction bearing having a ball rolling element, designed to resist axial thrust, or to support an axial load. Excludes BEARING, BALL, PIVOT.
Alternate Parts: 7133489, R1136A, R1136A, 3110-00-713-3489, 00-713-3489, 3110007133489, 007133489
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-713-3489 | 00019 ( BEARING, BALL, THRUST ) |
REFERENCE DRAWINGS & PICTURES

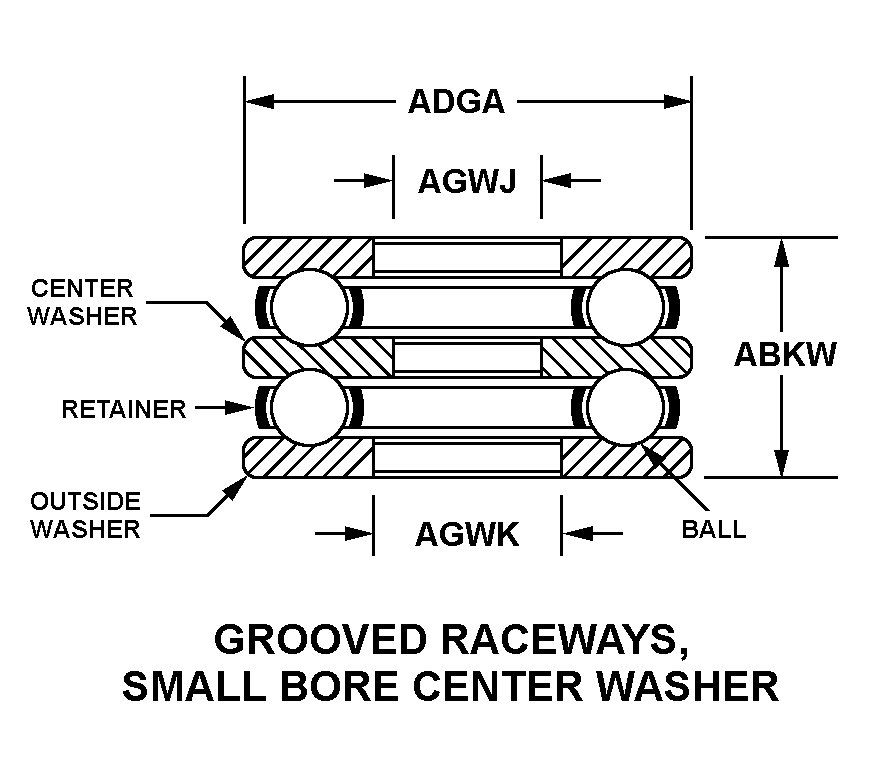

GROOVED RACEWAYS, SMALL BORE CENTER WASHER
Cross Reference | NSN 3110-00-713-3489
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7133489 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
| R1136A | 60380 | TIMKEN AEROSPACE, INCDBA TORRINGTON PRODUCT |
| R1136A | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
Technical Data | NSN 3110-00-713-3489
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | GROOVED RACEWAYS, SMALL BORE CENTER WASHER |
| OVERALL HEIGHT | 1.4380 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 13.5000 INCHES NOMINAL |
| BORE SMALLEST DIAMETER | 11.2486 INCHES NOMINAL |
| LARGEST BORE DIAMETER | 12.1250 INCHES NOMINAL |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| ALIGNMENT TYPE | RIGID |
| THRUST DIRECTIONAL CAPABILITY DESIGNATION | SINGLE |
