NSN 3110-00-713-9806
Part Details | CYLINDRICAL ROLLER BEARING
3110-00-713-9806 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: 375761, 375761, 3110-00-713-9806, 00-713-9806, 3110007139806, 007139806
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-713-9806 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
REFERENCE DRAWINGS & PICTURES

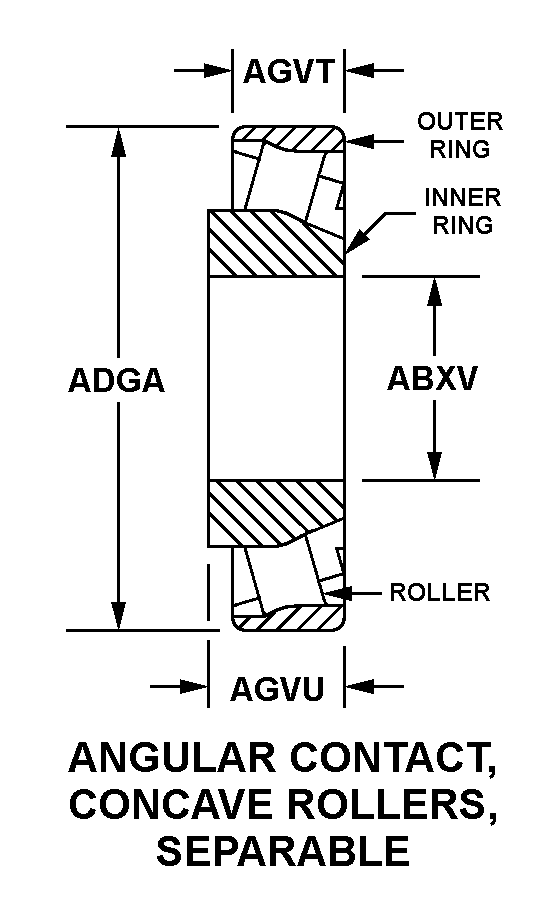

ANGULAR CONTACT, CONCAVE ROLLERS, SEPARABLE
Cross Reference | NSN 3110-00-713-9806
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 375761 | 1UVT5 | BRP US INC.DBA BOMBARDIER MOTOR CORP OF AMERICA |
| 375761 | 32195 | OUTBOARD MARINE CORPJOHNSON MOTORS DIV |
Technical Data | NSN 3110-00-713-9806
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANGULAR CONTACT, CONCAVE ROLLERS, SEPARABLE |
| BORE DIAMETER | 0.8130 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.9385 INCHES NOMINAL |
| OUTER RING WIDTH | 0.6250 INCHES NOMINAL |
| INNER RING WIDTH | 0.7853 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| LOCATING FEATURE | NONLOCATING |
