NSN 3110-00-721-9184
Part Details | OUTER BEARING RING
3110-00-721-9184 The outer component of a ball or roller bearing which provides a contact surface for the rolling elements of an antifriction bearing.
Alternate Parts: 7219184, 3110-00-721-9184, 00-721-9184, 3110007219184, 007219184
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1961 | 00-721-9184 | 00029 ( RING, BEARING, OUTER ) |
REFERENCE DRAWINGS & PICTURES

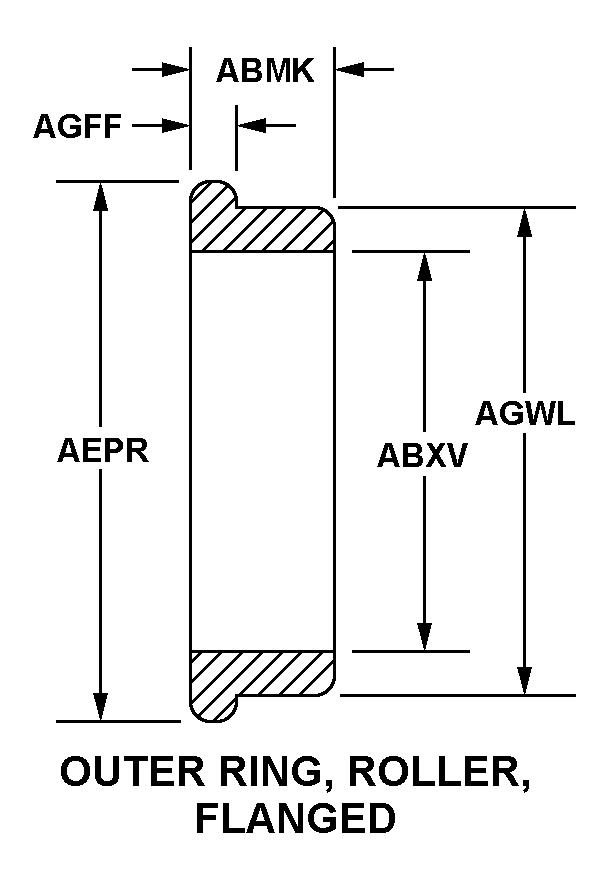

OUTER RING, ROLLER, FLANGED
Cross Reference | NSN 3110-00-721-9184
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7219184 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
Technical Data | NSN 3110-00-721-9184
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OUTER RING, ROLLER, FLANGED |
| OVERALL WIDTH | 1.1230 INCHES MINIMUM AND 1.1250 INCHES MAXIMUM |
| BORE DIAMETER | 28.2500 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 33.4900 INCHES MINIMUM AND 33.5000 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 33.4900 INCHES MINIMUM AND 33.5000 INCHES MAXIMUM |
| FLANGE WIDTH | 0.9950 INCHES MINIMUM AND 1.0050 INCHES MAXIMUM |
| SMALLEST OUTSIDE DIAMETER | 32.1150 INCHES MINIMUM AND 32.1250 INCHES MAXIMUM |
| SURFACE FINISH | GROUND |
