NSN 3110-00-722-1011
Part Details | PIVOT BALL BEARING
3110-00-722-1011 A bearing specifically designed internally to carry the combination radial and axial thrust produced at the end of a tapered or cylindrical flanged shaft in motion. See also BEARING, BALL, THRUST.
Alternate Parts: SS6A, 1204000123, 12-04000123, 1204000123, 12-040-00-123, 8176230, 3110-00-722-1011, 00-722-1011, 3110007221011, 007221011
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-722-1011 | 18032 ( BEARING, BALL, PIVOT ) |
REFERENCE DRAWINGS & PICTURES

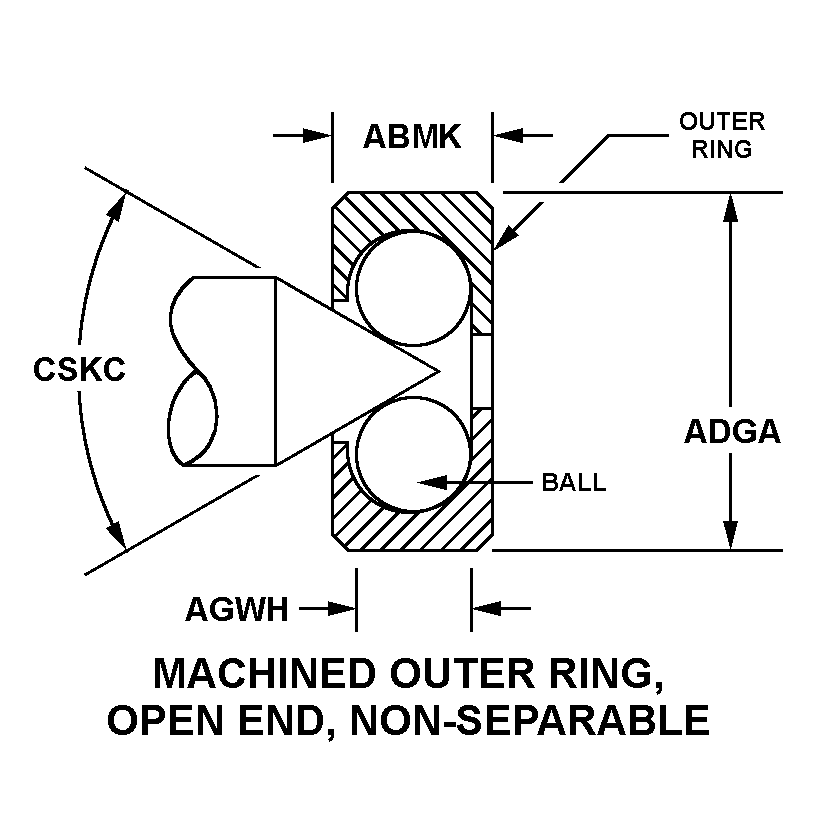

MACHINED OUTER RING, OPEN END, NON-SEPARABLE
Cross Reference | NSN 3110-00-722-1011
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SS6A | 40920 | MPB CORPORATIONDBA TIMKEN SUPER PRECISION |
| 12-04000123 | 78022 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN AEROSPACE |
| 12-040-00-123 | 78022 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN AEROSPACE |
| 8176230 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 3110-00-722-1011
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | MACHINED OUTER RING, OPEN END, NON-SEPARABLE |
| TAPER ANGLE | 60.00 DEGREES NOMINAL |
| OVERALL WIDTH | 0.1406 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.3750 INCHES NOMINAL |
| ROLLING ELEMENT DIAMETER | 0.0937 INCHES NOMINAL |
| LOAD DIRECTION | ANGULAR |
| BEARING BALL QUANTITY | 6 |
