NSN 3110-00-725-1530
Part Details | NEEDLE ROLLER BEARING
3110-00-725-1530 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Alternate Parts: 107R25811, 107R2581-1, D264, 107R25811, 107R2581-1, AJ38554, 3110-00-725-1530, 00-725-1530, 3110007251530, 007251530
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1961 | 00-725-1530 | 00051 ( BEARING, ROLLER, NEEDLE ) |
REFERENCE DRAWINGS & PICTURES

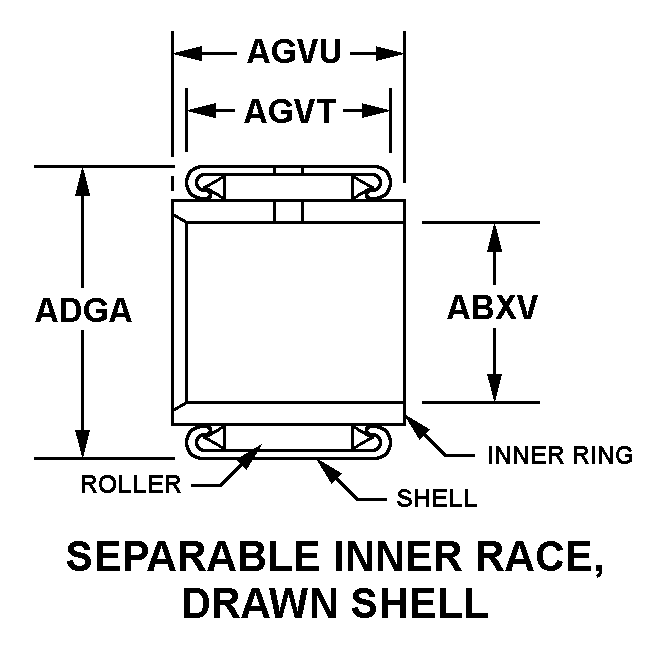

SEPARABLE INNER RACE, DRAWN SHELL
Cross Reference | NSN 3110-00-725-1530
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 107R2581-1 | 04836 | JAMAICA BEARINGS CO INCDIV GOVERNMENT SALES DIV. |
| D264 | 51588 | RBC BEARINGS INCORPORATEDDIV WEST TRENTON DIVISION |
| 107R2581-1 | 77272 | THE BOEING COMPANYDBA BOEING |
| AJ38554 | 60380 | TIMKEN AEROSPACE, INCDBA TORRINGTON PRODUCT |
Technical Data | NSN 3110-00-725-1530
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SEPARABLE INNER RACE, DRAWN SHELL |
| BORE DIAMETER | 3.4992 INCHES MINIMUM AND 3.5000 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 4.3742 INCHES MINIMUM AND 4.3750 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.8700 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM |
| INNER RING WIDTH | 1.0050 INCHES MINIMUM AND 1.0100 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR AIRFRAME NEEDLE BEARINGS |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
