NSN 3110-00-726-4397
Part Details | ANNULAR BALL BEARING
3110-00-726-4397 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 10131309, 10131-309, 3110-00-726-4397, 00-726-4397, 3110007264397, 007264397
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1961 | 00-726-4397 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

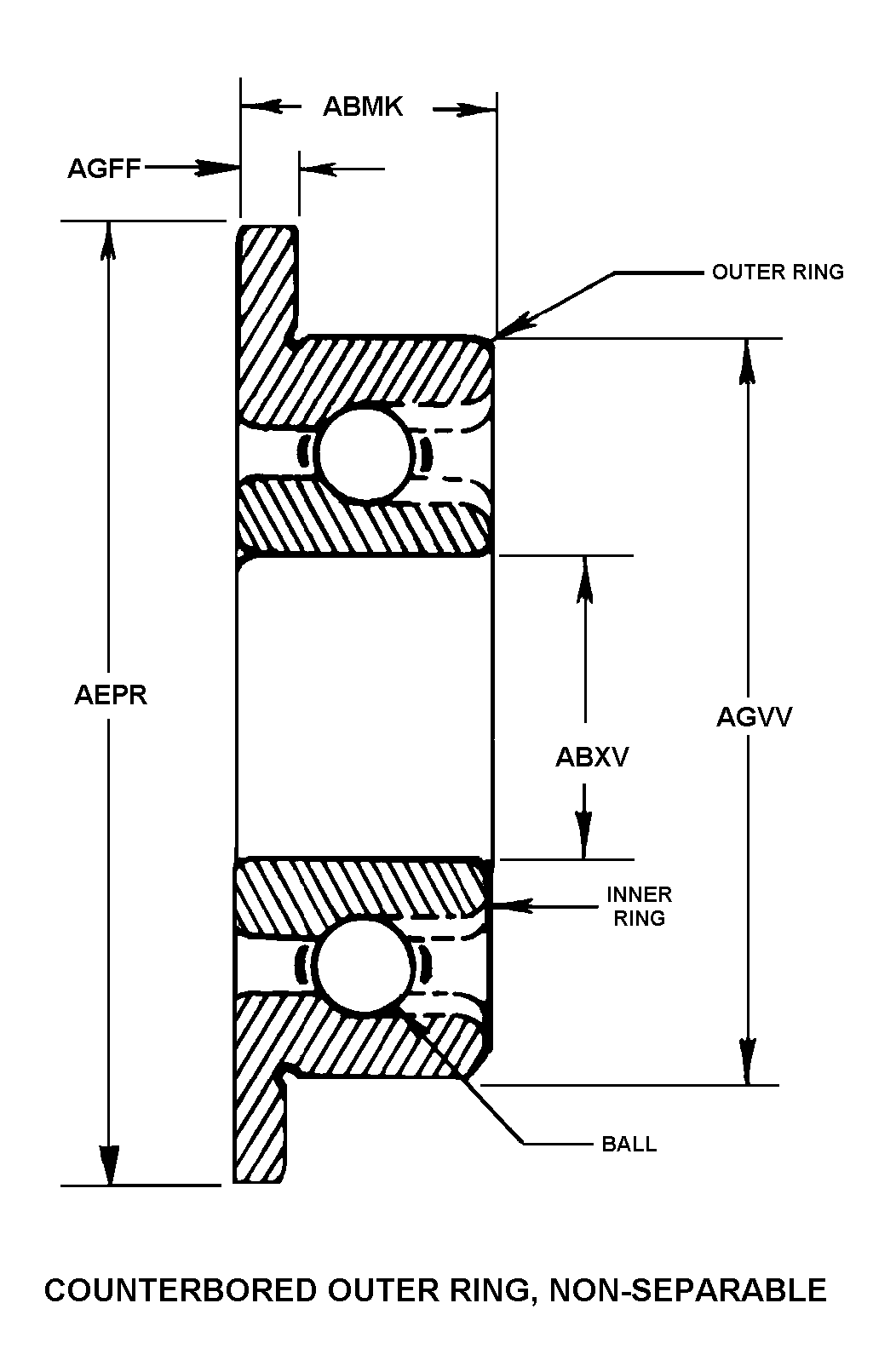

COUNTERBORED OUTER RING, NON-SEPARABLE
Cross Reference | NSN 3110-00-726-4397
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10131-309 | 10138 | ASTRONAUTICS CORPORATION OF AMERICA |
Technical Data | NSN 3110-00-726-4397
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | COUNTERBORED OUTER RING, NON-SEPARABLE |
| OVERALL WIDTH | 0.1250 INCHES NOMINAL |
| BORE DIAMETER | 0.1875 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.4220 INCHES NOMINAL |
| FLANGE WIDTH | 0.0230 INCHES NOMINAL |
| OUTER RING OUTSIDE DIAMETER | 0.3750 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.3 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
