NSN 3110-00-728-1450
Part Details | SELF-ALIGNING ROLLER BEARING
3110-00-728-1450 An antifriction bearing having a cylindrical rolling element and one spherical raceway which will adjust to varying degrees of shaft and/or support misalignment without damage to the raceways and permits the full rating of the bearing to be utilized.
Alternate Parts: E108065 FIND NO 163, B22424HL, 3110-00-728-1450, 00-728-1450, 3110007281450, 007281450
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | FEB 16, 1968 | 00-728-1450 | 00016 ( BEARING, ROLLER, SELF-ALIGNING ) |
REFERENCE DRAWINGS & PICTURES

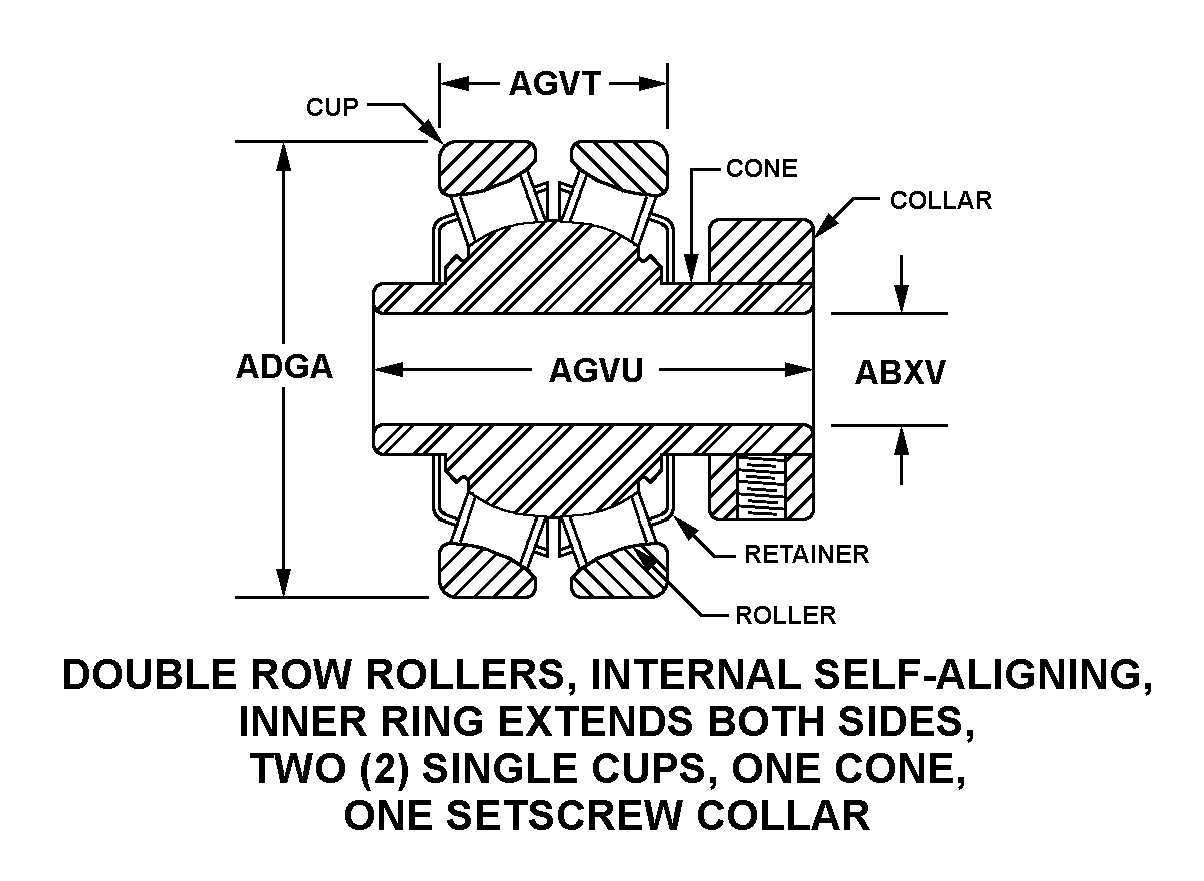

DOUBLE ROW ROLLERS, INTERNAL SELF-ALIGNING, INNER RING EXTENDS BOTH SIDES, TWO (2) SINGLE CUPS, ONE CONE, ONE SETSCREW COLLAR
Cross Reference | NSN 3110-00-728-1450
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| E108065 FIND NO 163 | 3X894 | CONTROL FLOW, INC.DBA WESTECH HEAVY MACHINERY DIV |
| B22424HL | 19382 | REXNORD INDUSTRIES, LLCDIV LINK-BELT BEARING OPERATION |
Technical Data | NSN 3110-00-728-1450
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE ROW ROLLERS, INTERNAL SELF-ALIGNING, INNER RING EXTENDS BOTH SIDES, TWO (2) SINGLE CUPS, ONE CONE, ONE SETSCREW COLLAR |
| BORE DIAMETER | 1.5000 INCHES MINIMUM AND 1.5010 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.8345 INCHES MINIMUM AND 2.8355 INCHES MAXIMUM |
| OUTER RING WIDTH | 1.2950 INCHES MINIMUM AND 1.3250 INCHES MAXIMUM |
| INNER RING WIDTH | 2.8750 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | LABYRINTH |
| SPECIAL FEATURES | FURNISHED W/SPRING LOCKING COLLAR |
