NSN 3110-00-728-9454
Part Details | CYLINDRICAL ROLLER BEARING
3110-00-728-9454 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: 541547, 51751, 51751, 51751, LLM1203104, LLM-1203-104, 3110-00-728-9454, 00-728-9454, 3110007289454, 007289454
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1961 | 00-728-9454 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
REFERENCE DRAWINGS & PICTURES

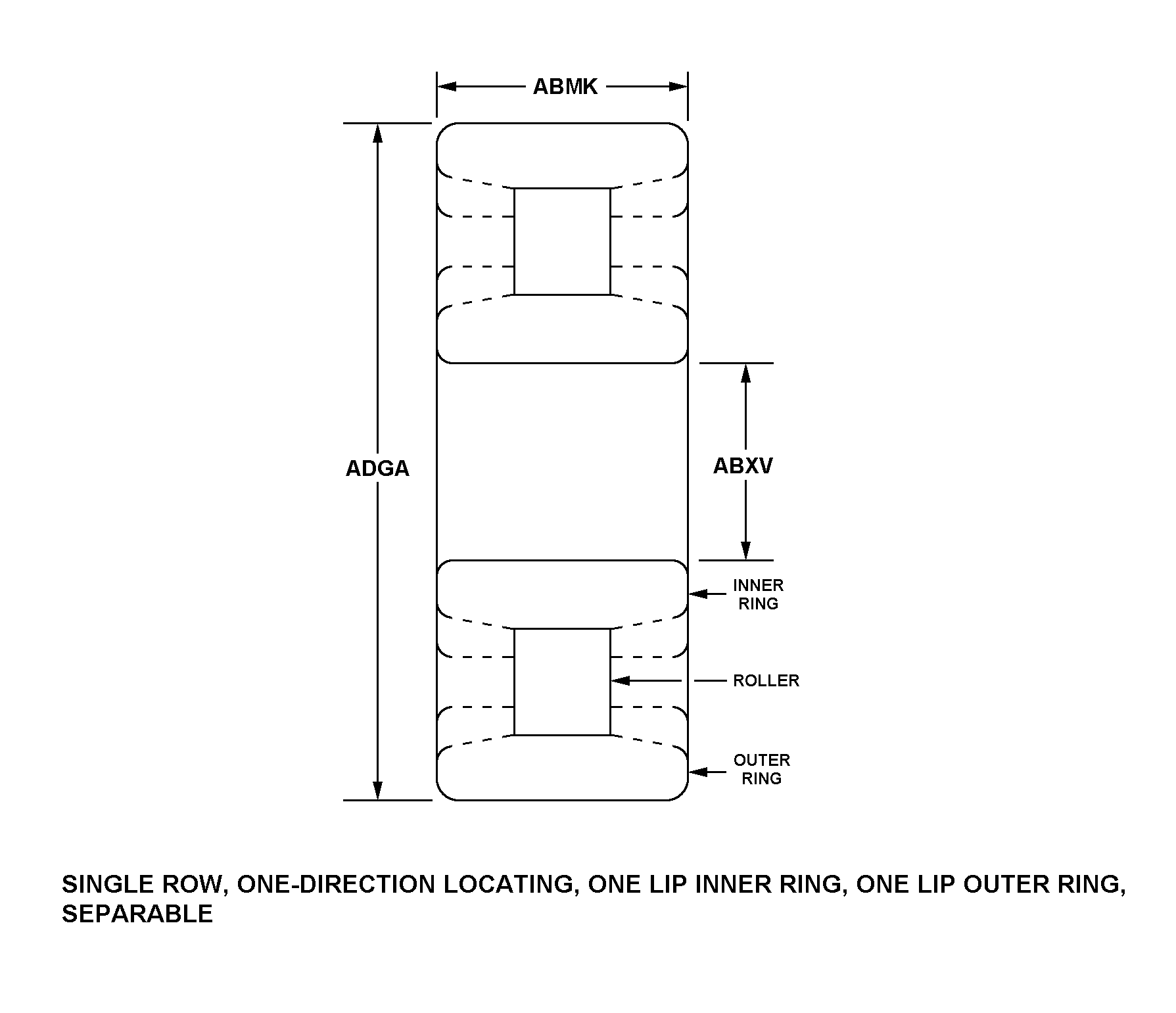

SINGLE ROW, ONE-DIRCTION LOCATING, ONE LIP INNER RING, ONE LIP OUTER RING, SEPARABLE
Cross Reference | NSN 3110-00-728-9454
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 541547 | 43991 | FAG BEARINGS CORPORATION |
| 51751 | 43991 | FAG BEARINGS CORPORATION |
| 51751 | 59211 | PARKER-HANNIFIN CORPORATIONDBA CUSTOMER SUPPORT MILITARY |
| 51751 | 93835 | PARKER-HANNIFIN CORPORATIONDBA HYDRAULIC SYSTEMS DIVISION |
| LLM-1203-104 | 51600 | REGAL BELOIT AMERICA, INC.DBA ROLLWAY BEARING |
Technical Data | NSN 3110-00-728-9454
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE ROW, ONE-DIRCTION LOCATING, ONE LIP INNER RING, ONE LIP OUTER RING, SEPARABLE |
| OVERALL WIDTH | 12.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 17.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 40.0 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOCATING FEATURE | ONE DIRECTION |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
