NSN 3110-00-730-6682
Part Details | BEARING RETAINING PLATE
3110-00-730-6682 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Alternate Parts: 10892458, 3110-00-730-6682, 00-730-6682, 3110007306682, 007306682
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-730-6682 | 22293 ( PLATE, RETAINING, BEARING ) |
REFERENCE DRAWINGS & PICTURES

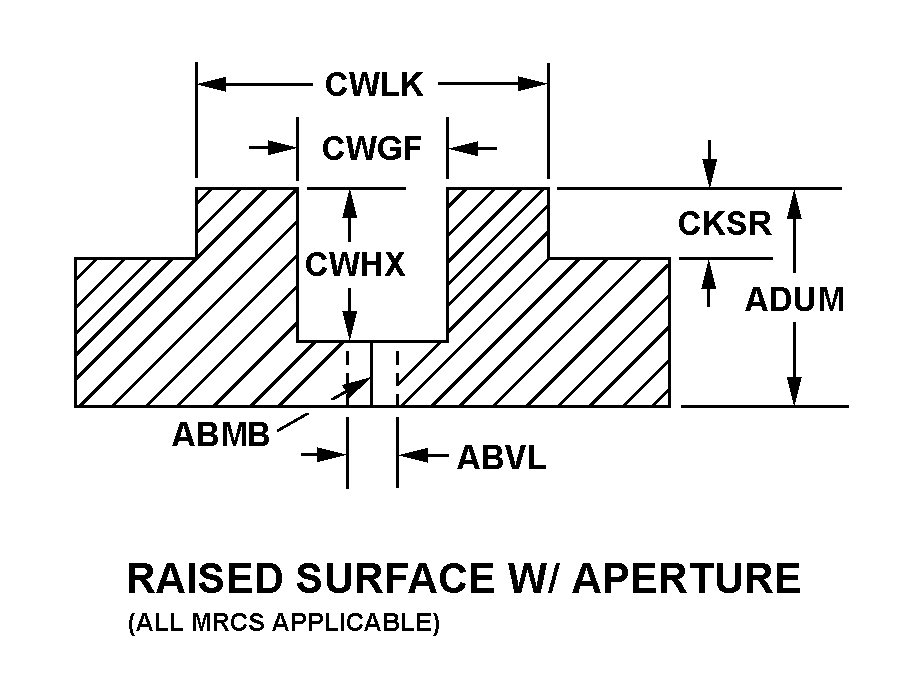

RAISED SURFACE W/APERTURE
VERTICAL CENTERLINE
ROUND
Cross Reference | NSN 3110-00-730-6682
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10892458 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
Technical Data | NSN 3110-00-730-6682
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND |
| OUTSIDE DIAMETER | 8.970 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | RAISED SURFACE W/APERTURE |
| MINOR THICKNESS | 1.320 INCHES NOMINAL |
| APERTURE DIAMETER | 7.002 INCHES NOMINAL |
| COUNTERBORE DIAMETER | 7.250 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.120 INCHES NOMINAL |
| OVERALL THICKNESS | 1.440 INCHES NOMINAL |
| OUTSIDE RAISED SURFACE DIAMETER | 7.985 INCHES NOMINAL |
| RAISED SURFACE HEIGHT | 0.750 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.312 INCHES NOMINAL |
| MOUNTING HOLE ARRANGEMENT STYLE | 5 VERTICAL CENTERLINE |
| BOLT CIRCLE HOLE QUANTITY | 12 |
| MOUNTING BOLT CIRCLE DIAMETER | 8.500 INCHES NOMINAL |
| SPECIAL FEATURES | RING GROOVE 0.1875 W X 7.756 DIA 0.190 FROM COUNTERBORE END |
| END ITEM IDENTIFICATION | M110A2 HOWITZER |
