Part Details | ANNULAR BALL BEARING
3110-00-731-9152 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: SSWC87038XR1E9, SSWC87038, SSWC87038XR1E9, SSWC87038, SSWC87038XR1E9, SSWC87038, B343064, B3430-64, 3110-00-731-9152, 00-731-9152, 3110007319152, 007319152
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-731-9152 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

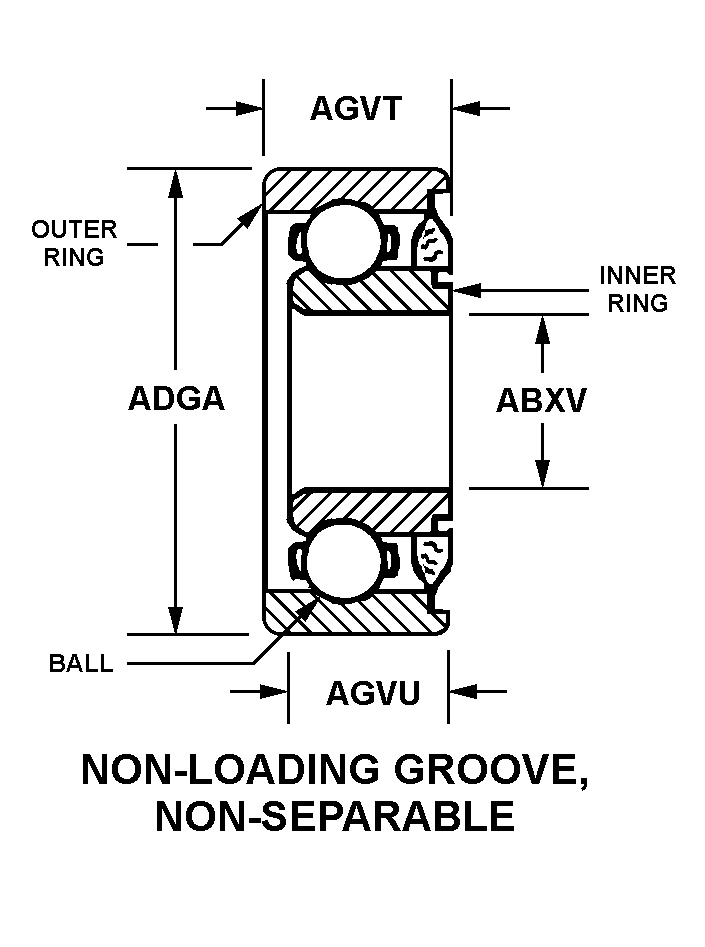

NON-LOADING GROOVE, NON-SEPARABLE
Cross Reference | NSN 3110-00-731-9152
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SSWC87038XR1E9 | 24617 | GENERAL MOTORS CORP |
| SSWC87038 | 24617 | GENERAL MOTORS CORP |
| SSWC87038XR1E9 | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| SSWC87038 | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| SSWC87038XR1E9 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| SSWC87038 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| B3430-64 | 73693 | SCHULZE MFG. INC. |
Technical Data | NSN 3110-00-731-9152
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | NON-LOADING GROOVE, NON-SEPARABLE |
| BORE DIAMETER | 8.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 22.00 MILLIMETERS NOMINAL |
| OUTER RING WIDTH | 0.4060 INCHES NOMINAL |
| INNER RING WIDTH | 0.3860 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SHIELD QUANTITY | 1 |
| SEAL QUANTITY | 1 |
| BEARING SEAL TYPE | CONTACT |
| LOAD DIRECTION | RADIAL |
| INTERNAL CLEARANCE | R0.0001 INCHES MINIMUM AND R0.0005 INCHES MAXIMUM |
