NSN 3110-00-732-1813
Part Details | CYLINDRICAL ROLLER BEARING
3110-00-732-1813 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: 124T042, 124T042, 124T042, 3110-00-732-1813, 00-732-1813, 3110007321813, 007321813
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-732-1813 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |

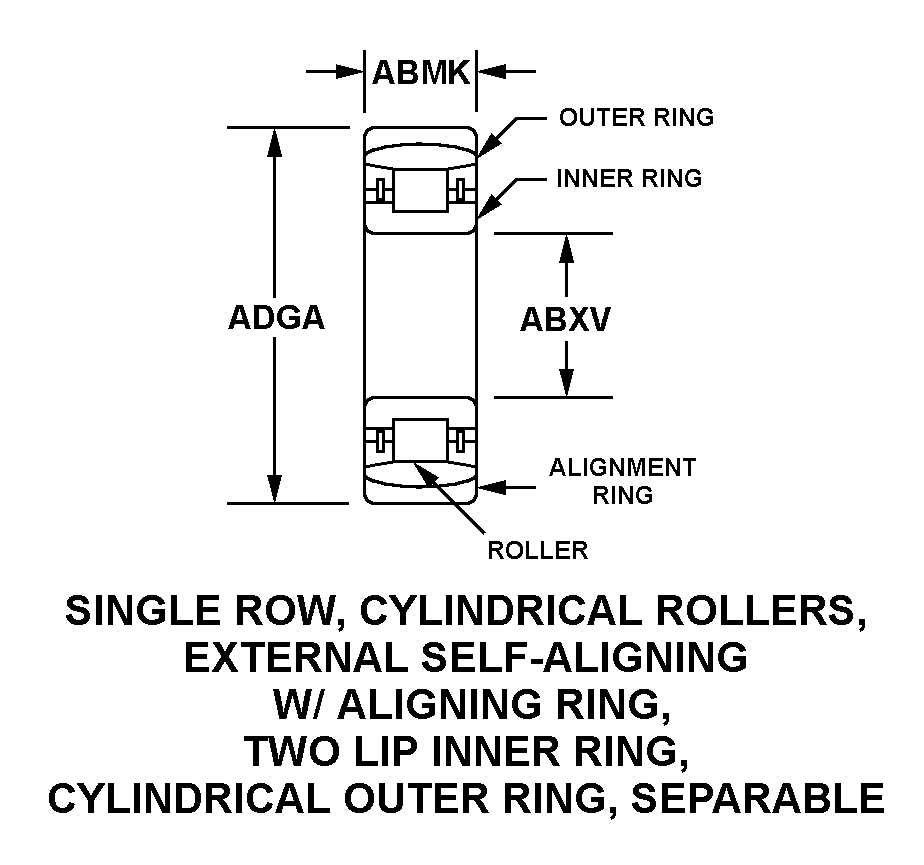

REFERENCE DRAWINGS & PICTURES
SINGLE ROW, CYLINDRICAL ROLLERS, EXTERNAL SELF-ALIGNING WITH ALIGNING RING, TWO LIP INNER RING, CYLINDRICAL OUTER RING, SEPARABLE
Cross Reference | NSN 3110-00-732-1813
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 124T042 | 48521 | COLT INDUSTRIES OPERATING CORPPRATT AND WHITNEY MACHINE TOOL DIV |
| 124T042 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
| 124T042 | 79500 | WESTINGHOUSE ELECTRIC CORP |
Technical Data | NSN 3110-00-732-1813
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE ROW, CYLINDRICAL ROLLERS, EXTERNAL SELF-ALIGNING WITH ALIGNING RING, TWO LIP INNER RING, CYLINDRICAL OUTER RING, SEPARABLE |
| OVERALL WIDTH | 25.0000 INCHES NOMINAL |
| BORE DIAMETER | 75.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 145.0000 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL CLEARANCE | R0.0018 INCHES MINIMUM AND R0.0022 INCHES MAXIMUM |
| SPECIAL FEATURES | SILVER PLATED RETAINER |
