NSN 3110-00-733-3775
Part Details | CYLINDRICAL ROLLER BEARING
3110-00-733-3775 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: DE22320C002, 7333775, 3110-00-733-3775, 00-733-3775, 3110007333775, 007333775
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-733-3775 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
REFERENCE DRAWINGS & PICTURES

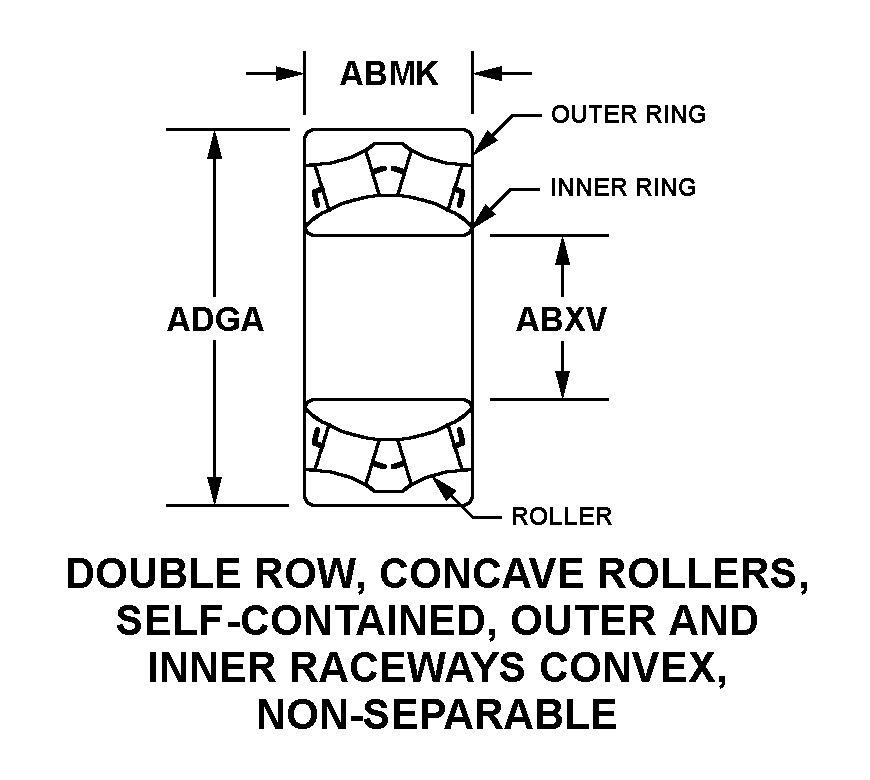

DOUBLE ROW, CONCAVE ROLLERS, ROLLER SELF-CONTAINED, OUTER AND INNER RACEWAYS CONVEX, NON-SEPARABLE
Cross Reference | NSN 3110-00-733-3775
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DE22320C002 | 36384 | FMC CORPLINK-BELT DIV |
| 7333775 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 3110-00-733-3775
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE ROW, CONCAVE ROLLERS, ROLLER SELF-CONTAINED, OUTER AND INNER RACEWAYS CONVEX, NON-SEPARABLE |
| OVERALL WIDTH | 2.8690 INCHES MINIMUM AND 2.8740 INCHES MAXIMUM |
| BORE DIAMETER | 3.9362 INCHES MINIMUM AND 3.9370 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 8.4634 INCHES MINIMUM AND 8.4646 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| CRITICALITY CODE JUSTIFICATION | AABMK$$AABXV$$AADGA |
