NSN 3110-00-735-6173
Part Details | OUTER BEARING RING
3110-00-735-6173 The outer component of a ball or roller bearing which provides a contact surface for the rolling elements of an antifriction bearing.
Alternate Parts: 10892433, 31107356173, 3110-735-6173, 10892433, 3110-00-735-6173, 00-735-6173, 3110007356173, 007356173
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-735-6173 | 00029 ( RING, BEARING, OUTER ) |
REFERENCE DRAWINGS & PICTURES

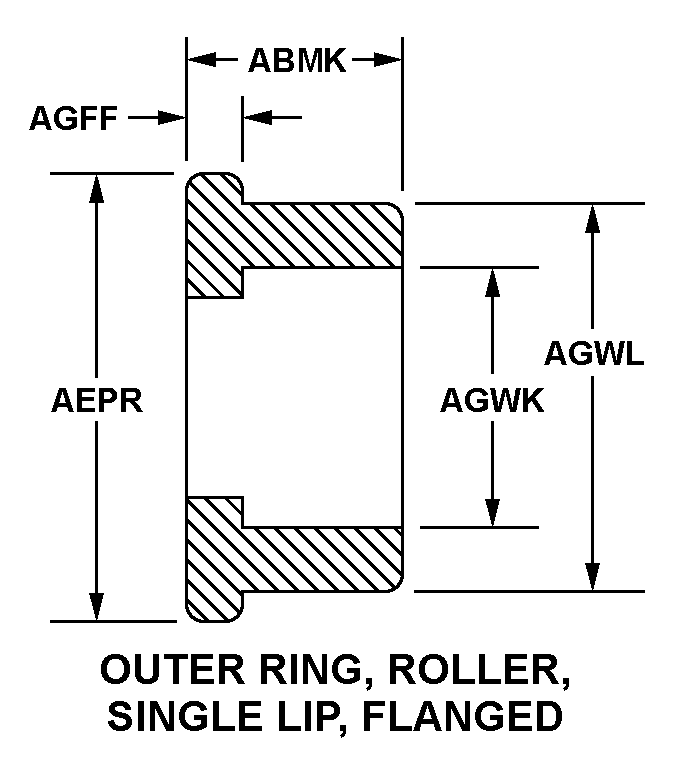

OUTER RING, ROLLER, SINGLE LIP, FLANGED
Cross Reference | NSN 3110-00-735-6173
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10892433 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
| 3110-735-6173 | A00AM | E.C.A ETABLISSEMENT CENTRALDESAPPROVISIONNEMENTS DES FORCES |
| 10892433 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 3110-00-735-6173
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OUTER RING, ROLLER, SINGLE LIP, FLANGED |
| OVERALL WIDTH | 0.2030 INCHES NOMINAL |
| BORE DIAMETER | 2.4375 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 2.9950 INCHES MINIMUM AND 2.9980 INCHES MAXIMUM |
| FLANGE WIDTH | 0.0970 INCHES NOMINAL |
| SMALLEST OUTSIDE DIAMETER | 2.7500 INCHES NOMINAL |
| SURFACE FINISH | GROUND |
