NSN 3110-00-739-3444
Part Details | BEARING ROLLER
3110-00-739-3444 A cylindrical body of either solid or hollow construction which provides the rolling elements in the roller bearing.
Alternate Parts: 7393444, 3110-00-739-3444, 00-739-3444, 3110007393444, 007393444
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-739-3444 | 00037 ( ROLLER, BEARING ) |
REFERENCE DRAWINGS & PICTURES

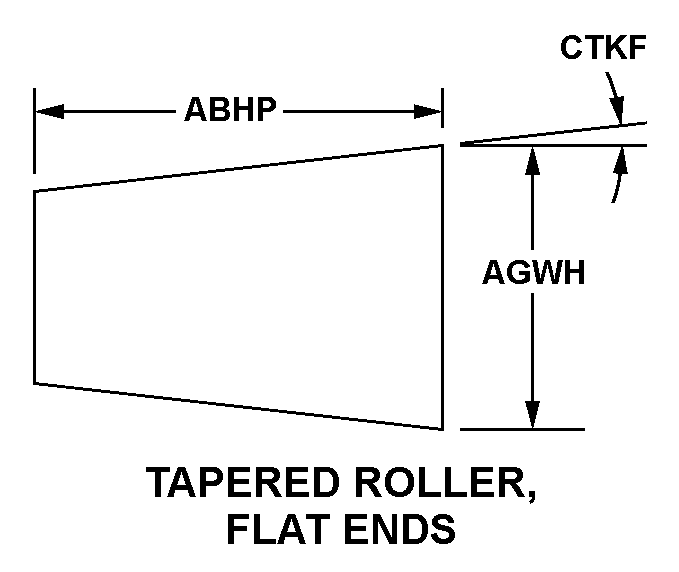

TAPERED ROLLER, FLAT ENDS
Cross Reference | NSN 3110-00-739-3444
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7393444 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 3110-00-739-3444
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TAPERED ROLLER, FLAT ENDS |
| OVERALL LENGTH | 1.6220 INCHES MINIMUM AND 1.6270 INCHES MAXIMUM |
| ROLLING ELEMENT DIAMETER | 0.9737 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM |
