NSN 3110-00-756-1406
Part Details | RADIAL AND THRUST ROLLER BEARING
3110-00-756-1406 A bearing consisting of a roller radial unit and a roller thrust unit. The inner ring of the radial unit is integrally one ring of the thrust unit. Excludes items in which the same row of rollers accommodates both radial and end thrust.
Alternate Parts: J812, J81-2, F812, F81-2, NTA815BEARINGXTRA815RACE, 3110-00-756-1406, 00-756-1406, 3110007561406, 007561406
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1962 | 00-756-1406 | 18037 ( BEARING, ROLLER, RADIAL AND THRUST ) |

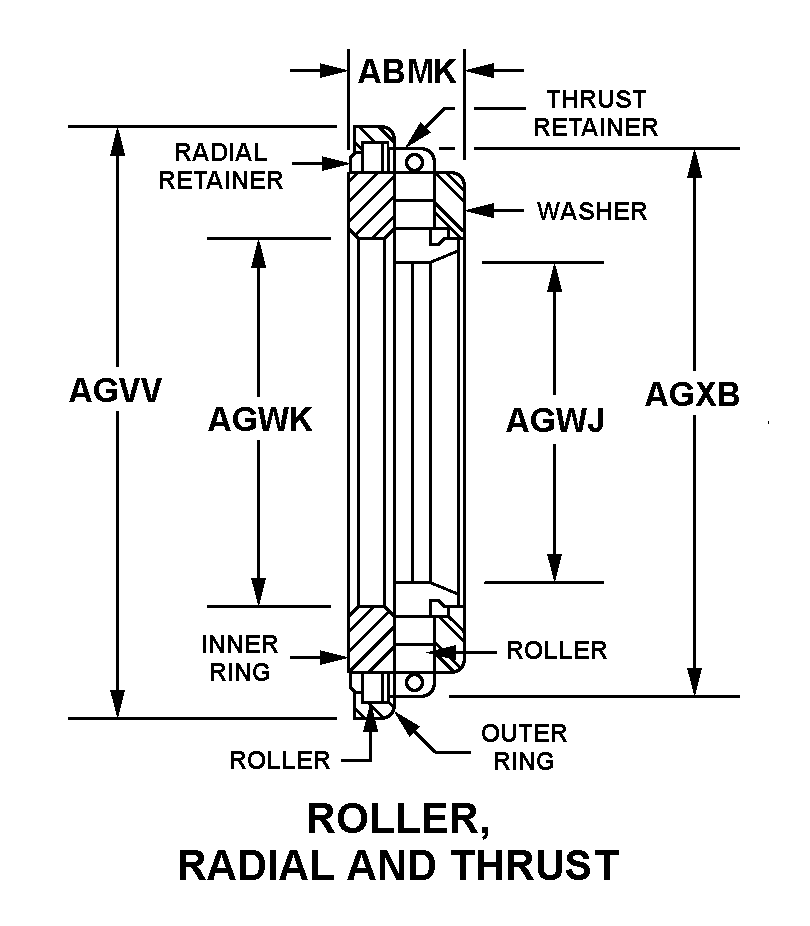

REFERENCE DRAWINGS & PICTURES
ROLLER, RADIAL AND THRUST
Cross Reference | NSN 3110-00-756-1406
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| J81-2 | 50306 | FEDERAL EQUIPMENT AND MANUFACTURINGCO., INC. |
| F81-2 | 50306 | FEDERAL EQUIPMENT AND MANUFACTURINGCO., INC. |
| NTA815BEARINGXTRA815RACE | 60380 | TIMKEN AEROSPACE, INCDBA TORRINGTON PRODUCT |
Technical Data | NSN 3110-00-756-1406
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROLLER, RADIAL AND THRUST |
| OVERALL WIDTH | 0.1420 INCHES NOMINAL |
| OUTER RING OUTSIDE DIAMETER | 0.9270 INCHES NOMINAL |
| BORE SMALLEST DIAMETER | 0.5020 INCHES NOMINAL |
| LARGEST BORE DIAMETER | 0.5020 INCHES NOMINAL |
| THRUST UNIT OUTSIDE DIAMETER | 0.9270 INCHES NOMINAL |
