NSN 3110-00-763-1527
Part Details | SELF-ALIGNING ROLLER BEARING
3110-00-763-1527 An antifriction bearing having a cylindrical rolling element and one spherical raceway which will adjust to varying degrees of shaft and/or support misalignment without damage to the raceways and permits the full rating of the bearing to be utilized.
Alternate Parts: 11251069, 1125-1-069, 22226CKJW33SNW26, 22226CKJW33-SNW26, 22226CJKW33SNW26, 22226CJKW33-SNW26, 3110-00-763-1527, 00-763-1527, 3110007631527, 007631527
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | APR 05, 1972 | 00-763-1527 | 00016 ( BEARING, ROLLER, SELF-ALIGNING ) |

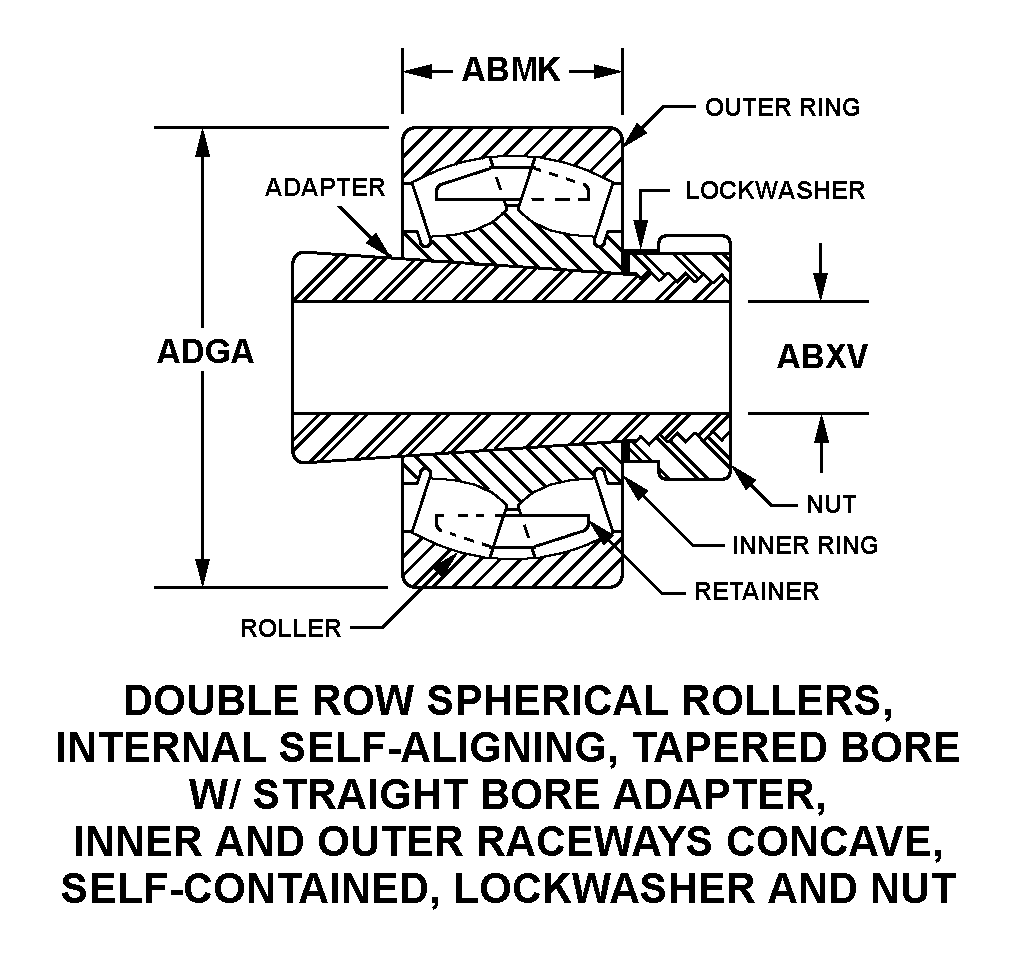

REFERENCE DRAWINGS & PICTURES
DOUBLE ROW SPHERICAL ROLLERS, INTERNAL SELF-ALIGNING, TAPERED BORE WITH STRAIGHT BORE ADAPTER, INNER AND OUTER RACEWAYS CONCAVE, SELF-CONTAINED, LOCKWASHER AND NUT
Cross Reference | NSN 3110-00-763-1527
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1125-1-069 | 25511 | NORTHERN LINE MACHINEDIV OF COMMENCEMENT INTL CORP |
| 22226CKJW33-SNW26 | 52676 | SKF USA INC. |
| 22226CJKW33-SNW26 | 52676 | SKF USA INC. |
Technical Data | NSN 3110-00-763-1527
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE ROW SPHERICAL ROLLERS, INTERNAL SELF-ALIGNING, TAPERED BORE WITH STRAIGHT BORE ADAPTER, INNER AND OUTER RACEWAYS CONCAVE, SELF-CONTAINED, LOCKWASHER AND NUT |
| OVERALL WIDTH | 64.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 4.4375 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 230.0 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| SPECIAL FEATURES | OIL HOLE AND GROOVE IN OD OF OUTER RING |
