NSN 3110-00-765-8579
Part Details | ROD END BALL BEARING
3110-00-765-8579 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.
Alternate Parts: 134PM100123, 134PM10012-3, 3110-00-765-8579, 00-765-8579, 3110007658579, 007658579
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1962 | 00-765-8579 | 00049 ( BEARING, BALL, ROD END ) |
REFERENCE DRAWINGS & PICTURES

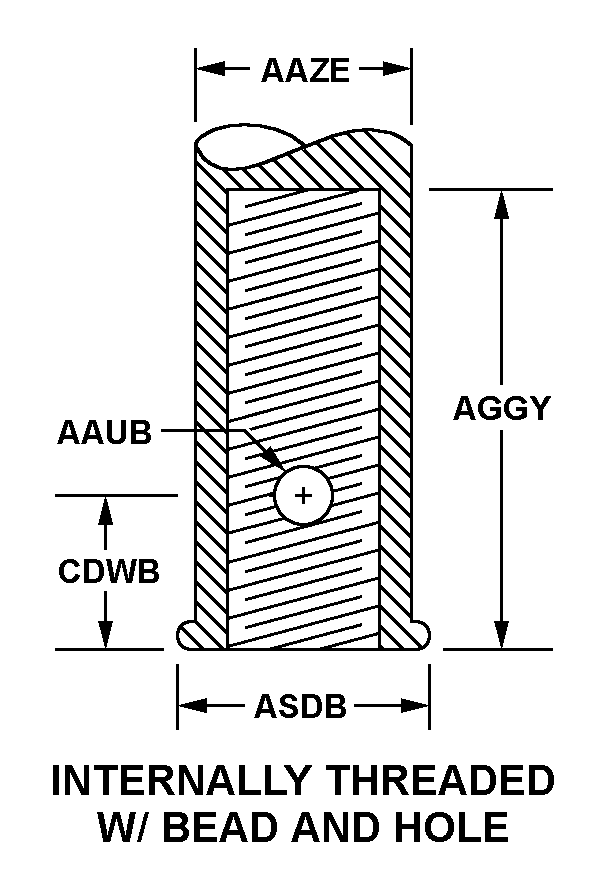

INTERNALLY THREADED W/BEAD AND HOLE
SINGLE ROW, BALL
Cross Reference | NSN 3110-00-765-8579
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 134PM10012-3 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
Technical Data | NSN 3110-00-765-8579
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE ROW, BALL |
| SHANK STYLE | INTERNALLY THREADED W/BEAD AND HOLE |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| SPECIAL FEATURES | SINGLE ROW BEARING,BEARING STAKEDIN STEEL ROD END |
