NSN 3110-00-766-6527
Part Details | ANNULAR BALL BEARING
3110-00-766-6527 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: JD55023623A, JD5502-362-3A, 207SFFXY118, 207SFFXY11-8, 207SFFXY1 18, 207SFFXY1 1-8, 3110-00-766-6527, 00-766-6527, 3110007666527, 007666527
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1962 | 00-766-6527 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

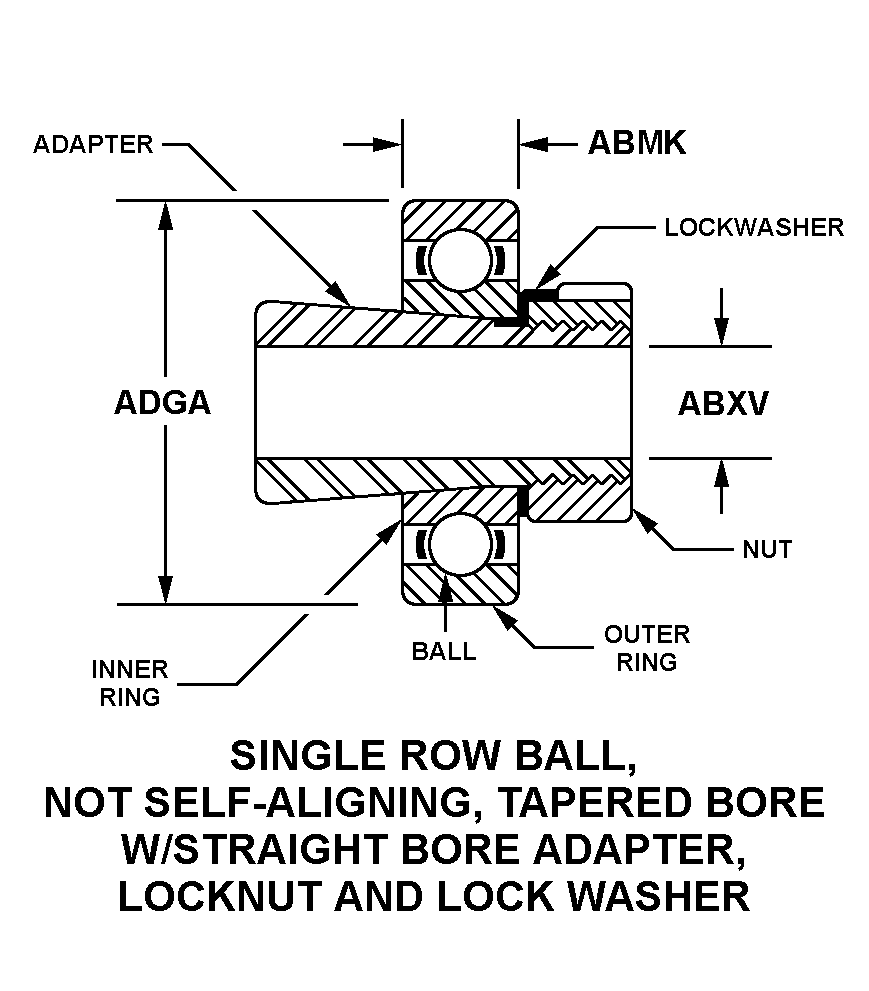

SINGLE ROW BALL, NOT SELF-ALIGNING TAPERED BORE WITH STRAIGHT BORE ADAPTER, LOCKNUT AND LOCK WASHER
Cross Reference | NSN 3110-00-766-6527
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| JD5502-362-3A | 45206 | OTIS ELEVATOR COSUB OF UNITED TECHNOLOGIES CORP |
| 207SFFXY11-8 | 38443 | SKF USA INC.DBA SKF AEROENGINE NORTH AMERICA |
| 207SFFXY1 1-8 | 38443 | SKF USA INC.DBA SKF AEROENGINE NORTH AMERICA |
Technical Data | NSN 3110-00-766-6527
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE ROW BALL, NOT SELF-ALIGNING TAPERED BORE WITH STRAIGHT BORE ADAPTER, LOCKNUT AND LOCK WASHER |
| OVERALL WIDTH | 17.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 1.1250 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 72.00 MILLIMETERS NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SHIELD QUANTITY | 2 |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| SPECIAL FEATURES | WITH COMPLETE ADAPTER CONSISTING OF ADAPTER SLEEVE,LOCKNUT & LOCKWASHER |
