NSN 3110-00-787-9832
Part Details | THRUST BALL BEARING
3110-00-787-9832 An antifriction bearing having a ball rolling element, designed to resist axial thrust, or to support an axial load. Excludes BEARING, BALL, PIVOT.
Alternate Parts: A841S5, N1456, CA02135C, 904765, CT34BXY1C, 904765, CT34BXY1C, TT1087HC, 3110-00-787-9832, 00-787-9832, 3110007879832, 007879832
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | MAR 20, 1968 | 00-787-9832 | 00019 ( BEARING, BALL, THRUST ) |
REFERENCE DRAWINGS & PICTURES

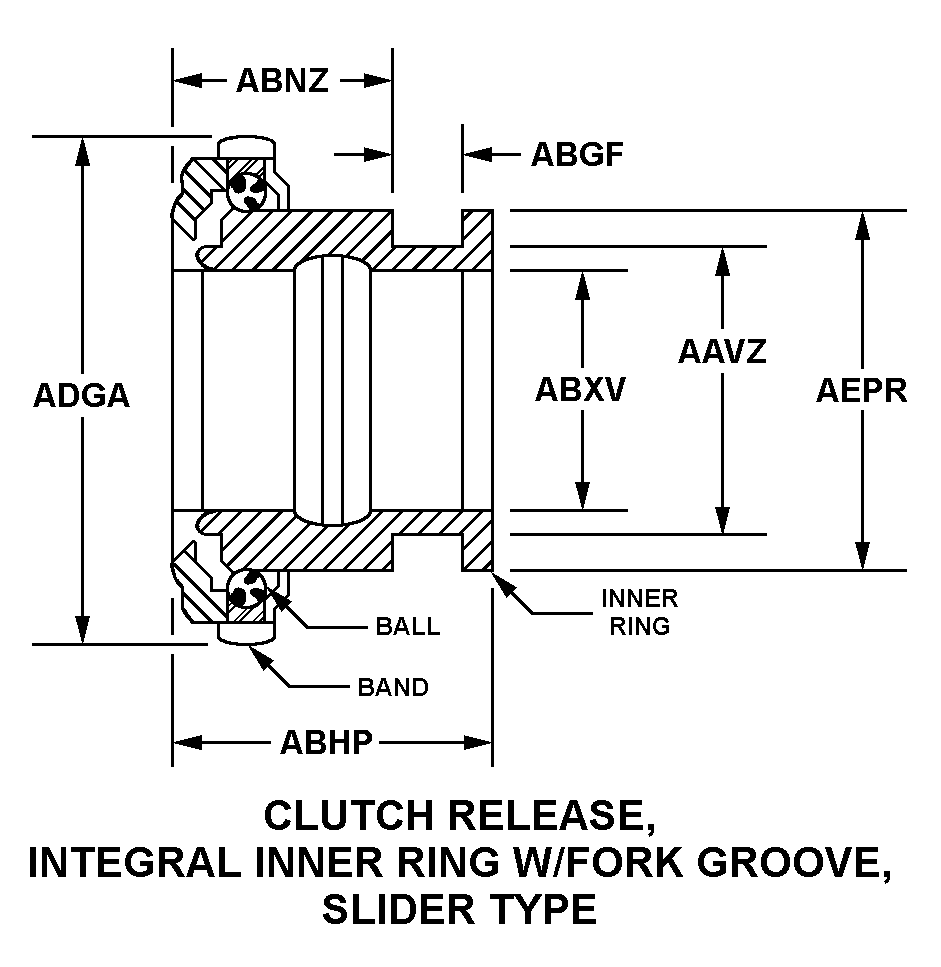

CLUTCH RELEASE, INTEGRAL INNER RING W/FORK GROOVE, SLIDER TYPE
Cross Reference | NSN 3110-00-787-9832
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A841S5 | 00658 | ABC ACQUISITION COMPANYDBA AETNA BEARING COMPANY |
| N1456 | 71366 | BUNTING BEARINGS CORP |
| CA02135C | 01212 | FEDERAL-MOGUL CORPGOVERNMENT SALES DEPT |
| 904765 | 11862 | GENERAL MOTORS CORPCHEVROLET MOTOR DIV |
| CT34BXY1C | 11862 | GENERAL MOTORS CORPCHEVROLET MOTOR DIV |
| 904765 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| CT34BXY1C | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| TT1087HC | 80040 | L AND S BEARING CO INC |
Technical Data | NSN 3110-00-787-9832
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CLUTCH RELEASE, INTEGRAL INNER RING W/FORK GROOVE, SLIDER TYPE |
| GROOVE DIAMETER | 2.1350 INCHES MINIMUM AND 2.1450 INCHES MAXIMUM |
| GROOVE WIDTH | 0.5000 INCHES MINIMUM AND 0.5080 INCHES MAXIMUM |
| OVERALL LENGTH | 2.7700 INCHES MINIMUM AND 2.8500 INCHES MAXIMUM |
| EFFECTIVE LENGTH | 2.1750 INCHES MINIMUM AND 2.2050 INCHES MAXIMUM |
| BORE DIAMETER | 1.8740 INCHES MINIMUM AND 1.8760 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 3.4720 INCHES MINIMUM AND 3.5020 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 2.6330 INCHES MINIMUM AND 2.6430 INCHES MAXIMUM |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| ALIGNMENT TYPE | RIGID |
| THRUST DIRECTIONAL CAPABILITY DESIGNATION | SINGLE |
