NSN 3110-00-790-4646
Part Details | LINEAR MOTION BALL BEARING
3110-00-790-4646 A cylindrical device, containing three or more oblong ball circuits complete with a retainer to guide the balls in their proper path, specifically designed for use on sliding linear motion shafts to minimize friction and wear.
Alternate Parts: 6263496, 4010670, 401-0670, 227881200, 2278812-00, 887B050608, 050608, 29125901, 2912590-1, 92768641, 9276864-1, 5075822, 507582-2, LBB375SS, LBB-375SS, A61014SS, A61014SSMILG3278A, A61014SS, 9176594, 3110-00-790-4646, 00-790-4646, 3110007904646, 007904646
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1962 | 00-790-4646 | 61484 ( BEARING, BALL, LINEAR MOTION ) |

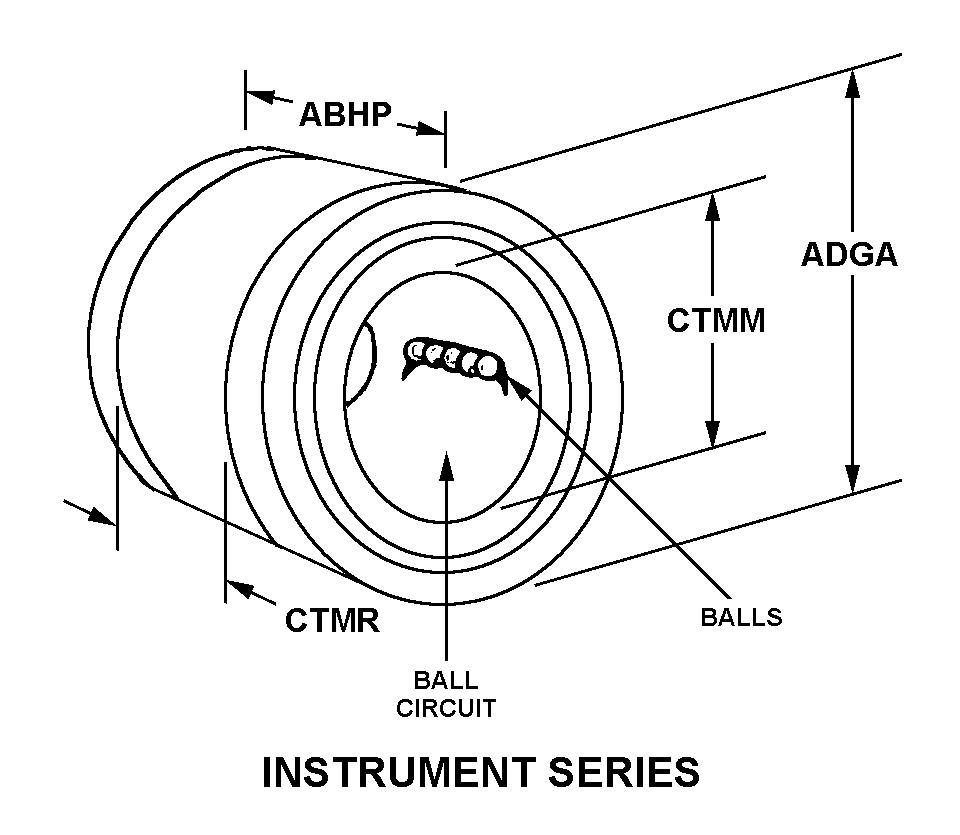

REFERENCE DRAWINGS & PICTURES
INSTRUMENT SERIES
Cross Reference | NSN 3110-00-790-4646
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6263496 | 6V279 | ANDERSON METAL INDUSTRIES, INC. |
| 401-0670 | 52151 | CONTINENTAL ELECTRONICS CORPORATION |
| 2278812-00 | 06401 | L3 TECHNOLOGIES, INC.DBA COMMUNICATION SYSTEMS-WEST |
| 887B050608 | 34228 | L3 TECHNOLOGIES, INC.DBA L3 KEO |
| 050608 | 34228 | L3 TECHNOLOGIES, INC.DBA L3 KEO |
| 2912590-1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 9276864-1 | 19203 | PICATINNY ARSENAL |
| 507582-2 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
| LBB-375SS | 73134 | ROLLER BEARING COMPANY OF AMERICA,INC. |
| A61014SS | 01471 | THOMAS INDUSTRIES INC |
| A61014SSMILG3278A | 96881 | THOMSON INDUSTRIES INC |
| A61014SS | 96881 | THOMSON INDUSTRIES INC |
| 9176594 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 3110-00-790-4646
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | INSTRUMENT SERIES |
| OVERALL LENGTH | 0.8600 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 0.6246 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM |
| WORKING BORE DIAMETER | 0.3745 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |
| DISTANCE BETWEEN RETAINING RINGS | 0.5520 INCHES MINIMUM AND 0.5720 INCHES MAXIMUM |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | STAMPED |
| SHIELD QUANTITY | 2 |
| ALIGNMENT TYPE | RIGID |
| BEARING BALL QUANTITY | 4 |
| FEATURES PROVIDED | MOUNTING GROOVE |
| SPECIAL FEATURES | SLOTTED OUTER RING |
