Part Details | ANNULAR BALL BEARING
3110-00-820-9405 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 50470, 50470, 747030, P19410402, P19410-402, FFB171, FF-B-171, W216U, PB1, XND36X90, W216U, W216UL, RA100PPBFS115, RA100PPBANDC0LLAR, RA100PPB, RA100NPPBES104AANDC0LL0R, RA100NPPB+COLFS381A, RA100NPPB+COL, RA100NPPB, 3110-00-820-9405, 00-820-9405, 3110008209405, 008209405
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-820-9405 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

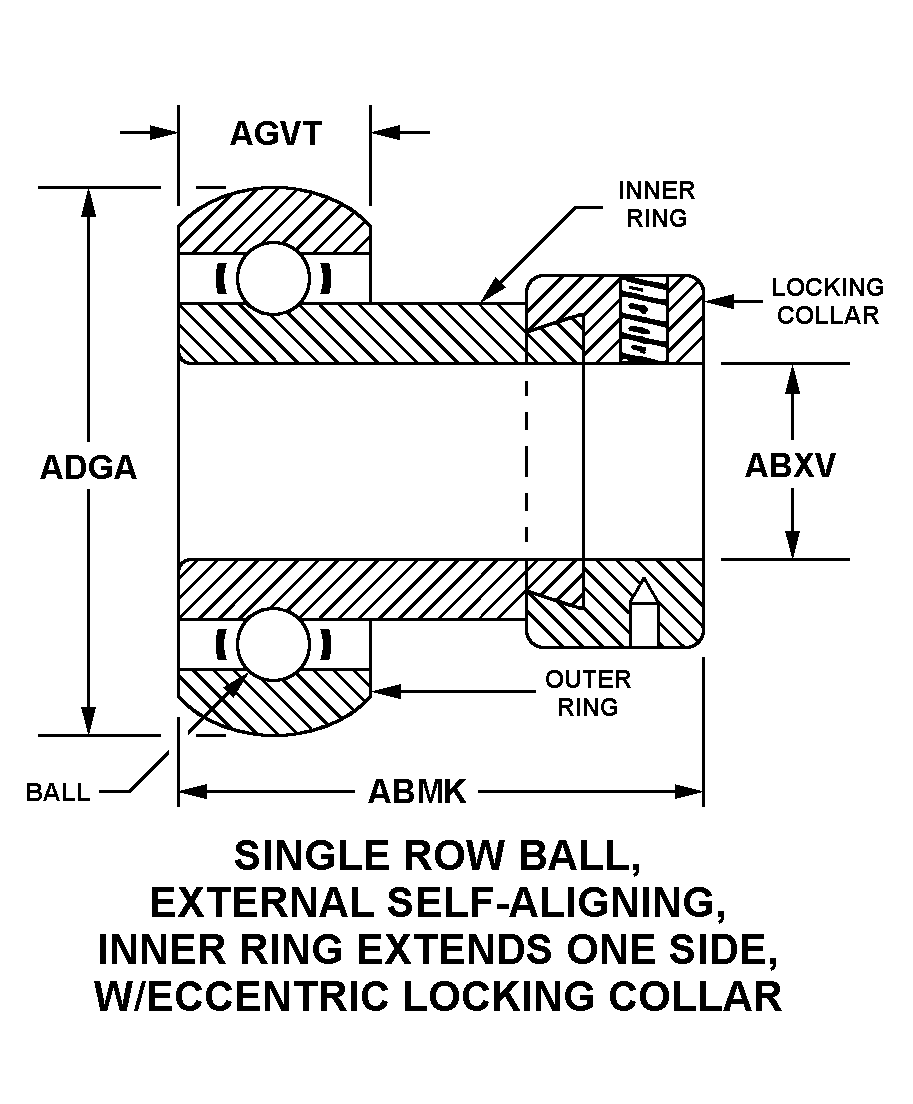

SINGLE ROW BALL EXTERNAL SELF-ALIGNING, INNER RING EXTENDS ONE SIDE, WITH ECCENTRIC LOCKING COLLAR
Cross Reference | NSN 3110-00-820-9405
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 50470 | 6L214 | BADGER FIRE PROTECTION INC |
| 50470 | 07464 | BADGER FIRE PROTECTION INC |
| 747030 | 15667 | CASE J I CO |
| P19410-402 | 00736 | FALLS FILTRATION TECHNOLOGIES, INC. |
| FF-B-171 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| W216U | 36384 | FMC CORPLINK-BELT DIV |
| PB1 | 00261 | GENERAL ELECTRIC COFOOD SERVICE EQUIPMENT BUSINESS DEPT |
| XND36X90 | 28873 | HOBART CORPORATIONDBA HOBART |
| W216U | 82994 | PT COMPONENTS INCDRIVE DIV |
| W216UL | 19382 | REXNORD INDUSTRIES, LLCDIV LINK-BELT BEARING OPERATION |
| RA100PPBFS115 | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
| RA100PPBANDC0LLAR | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
| RA100PPB | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
| RA100NPPBES104AANDC0LL0R | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
| RA100NPPB+COLFS381A | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
| RA100NPPB+COL | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
| RA100NPPB | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
Technical Data | NSN 3110-00-820-9405
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE ROW BALL EXTERNAL SELF-ALIGNING, INNER RING EXTENDS ONE SIDE, WITH ECCENTRIC LOCKING COLLAR |
| OVERALL WIDTH | 1.2187 INCHES NOMINAL |
| BORE DIAMETER | 1.0000 INCHES MINIMUM AND 1.0005 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 52.0 MILLIMETERS NOMINAL |
| OUTER RING WIDTH | 15.0 MILLIMETERS NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | ANDOK B,FSCM 29700 MFR REF SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | EXTERNAL |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| SPECIAL FEATURES | CONTAINS SELF-LOCKING COLLAR |
