NSN 3110-00-821-5094
Part Details | BEARING RETAINING PLATE
3110-00-821-5094 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Alternate Parts: 11687114, 7171113, 717111-3, 3110-00-821-5094, 00-821-5094, 3110008215094, 008215094
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | AUG 09, 1967 | 00-821-5094 | 22293 ( PLATE, RETAINING, BEARING ) |
REFERENCE DRAWINGS & PICTURES
RAISED SURFACE W/O APERTURE

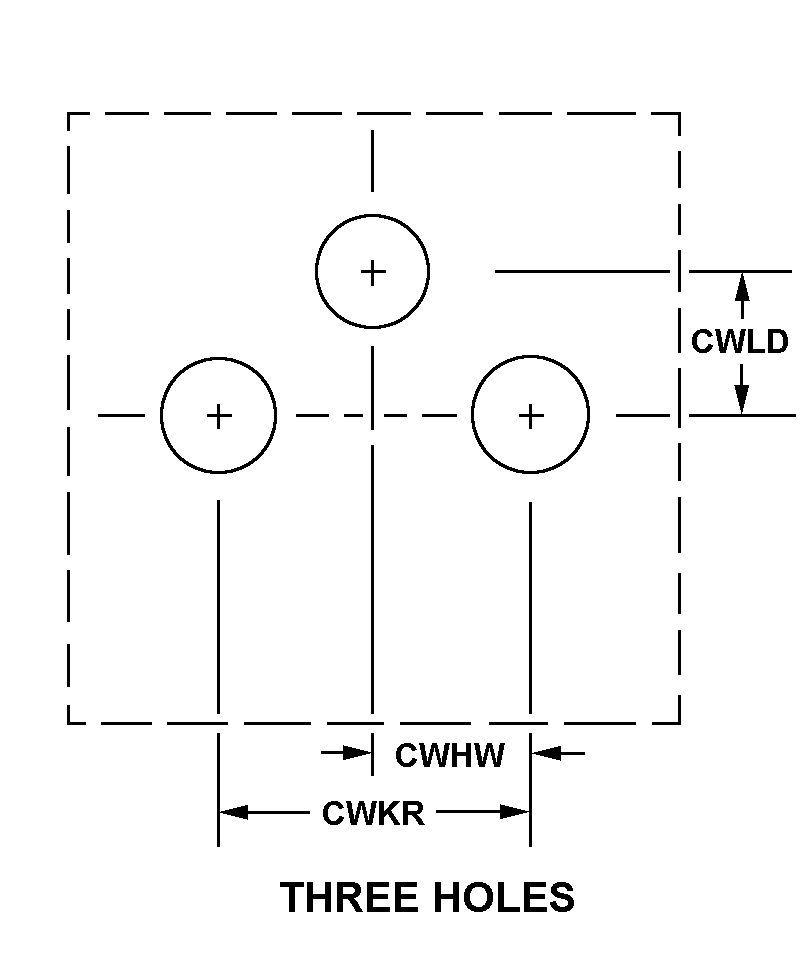

THREE HOLES
ROUND
Cross Reference | NSN 3110-00-821-5094
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11687114 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
| 717111-3 | 20418 | DRS SUSTAINMENT SYSTEMS, INC.Use CAGE Code 98255 for cataloging |
Technical Data | NSN 3110-00-821-5094
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND |
| OUTSIDE DIAMETER | 1.970 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | RAISED SURFACE W/O APERTURE |
| MINOR THICKNESS | 0.078 INCHES NOMINAL |
| COUNTERBORE DIAMETER | 0.960 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.117 INCHES NOMINAL |
| OVERALL THICKNESS | 0.195 INCHES NOMINAL |
| OUTSIDE RAISED SURFACE DIAMETER | 1.102 INCHES NOMINAL |
| RAISED SURFACE HEIGHT | 0.117 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.206 INCHES NOMINAL |
| MOUNTING HOLE ARRANGEMENT STYLE | THREE HOLES |
| DISTANCE FROM VERTICAL CENTERLINE TO CENTER OF RIGHT HOLE | 0.736 INCHES NOMINAL |
| DISTANCE BETWEEN HOLE CENTERS ALONG BASE | 1.472 INCHES NOMINAL |
| DISTANCE BETWEEN HOLE CENTERS ALONG HEIGHT | 0.893 INCHES NOMINAL |
| END ITEM IDENTIFICATION | ARMT SUBSYSTEM,M28A1E2 |
