NSN 3110-00-836-9611
Part Details | TAPERED ROLLER BEARING CONE AND ROLLERS
3110-00-836-9611 An assembled inner component of a tapered roller bearing, consisting of a cone (which provides a contact surface for the rolling elements of the bearing), a complement of tapered rollers (the rolling elements), and frequently a retainer (which spaces the rolling elements).
Alternate Parts: 6131, 53175T, 3110-00-836-9611, 00-836-9611, 3110008369611, 008369611
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | SEP 15, 1967 | 00-836-9611 | 00023 ( CONE AND ROLLERS, TAPERED ROLLER BEARING ) |

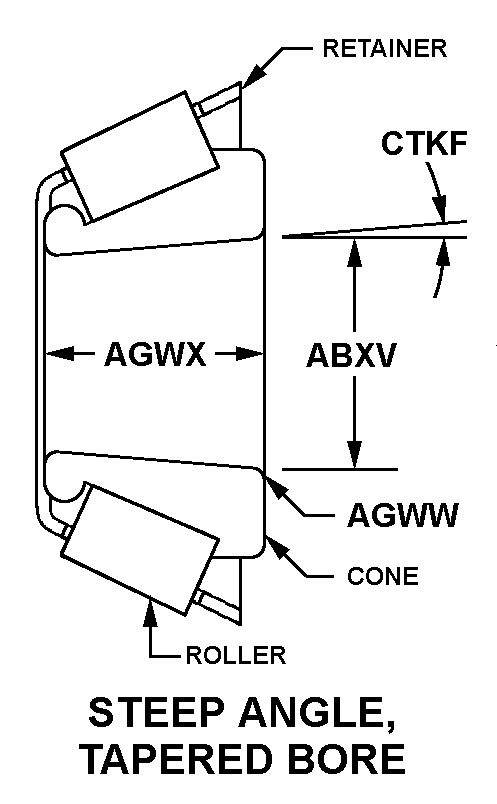

REFERENCE DRAWINGS & PICTURES
STEEP ANGLE, TAPERED BORE
Cross Reference | NSN 3110-00-836-9611
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6131 | 03476 | TEREX REEDRILL DBA REEDRILL TEXOMADIV TEREX MINING |
| 53175T | 60038 | TIMKEN CORPORATION, THEDIV TIMKEN COMPANY |
Technical Data | NSN 3110-00-836-9611
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STEEP ANGLE, TAPERED BORE |
| TAPER | 1.000 PER FOOT IN INCHES NOMINAL |
| BORE DIAMETER | 1.7500 INCHES NOMINAL |
| CONE CORNER RADIUS | 0.0938 INCHES NOMINAL |
| CONE WIDTH | 1.7500 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA CLASS 2 |
| RETAINER FABRICATION METHOD | PRESSED |
