NSN 3110-00-843-4190
Part Details | ANNULAR BALL BEARING
3110-00-843-4190 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 909048, 909048, 909048, 3110-00-843-4190, 00-843-4190, 3110008434190, 008434190
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | DEC 30, 1966 | 00-843-4190 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

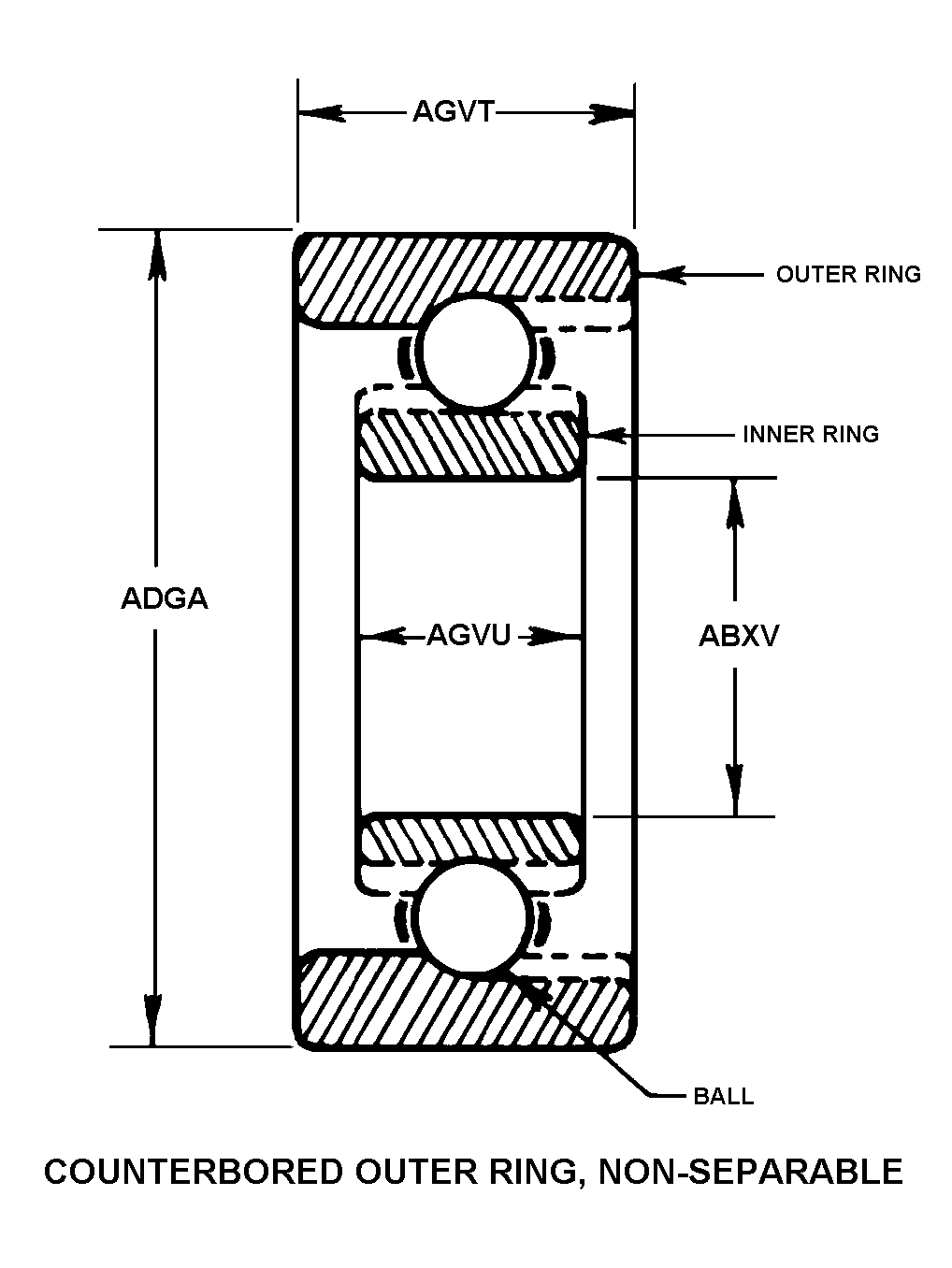

COUNTERBORED OUTER RING, NON-SEPARABLE
Cross Reference | NSN 3110-00-843-4190
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 909048 | 11862 | GENERAL MOTORS CORPCHEVROLET MOTOR DIV |
| 909048 | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| 909048 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
Technical Data | NSN 3110-00-843-4190
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | COUNTERBORED OUTER RING, NON-SEPARABLE |
| OVERALL WIDTH | 0.8900 INCHES MINIMUM AND 0.9100 INCHES MAXIMUM |
| BORE DIAMETER | 1.4995 INCHES MINIMUM AND 1.5000 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 3.1491 INCHES MINIMUM AND 3.1501 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.6500 INCHES NOMINAL |
| INNER RING WIDTH | 0.7000 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| LOAD DIRECTION | ANGULAR |
| CONTACT ANGLE | 25.0 DEGREES MINIMUM |
| SPECIAL FEATURES | BREAKOUT ON OD OF INNER RING,0.1000 IN. RADIUS ON OD ON OD CORNER OPPOSITE EXTENDED SIDE OF INNER RING |
