NSN 3110-00-844-1780
Part Details | BEARING ROLLER
3110-00-844-1780 A cylindrical body of either solid or hollow construction which provides the rolling elements in the roller bearing.
Alternate Parts: P3804, 3110-00-844-1780, 00-844-1780, 3110008441780, 008441780
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | SEP 20, 1967 | 00-844-1780 | 00037 ( ROLLER, BEARING ) |
REFERENCE DRAWINGS & PICTURES

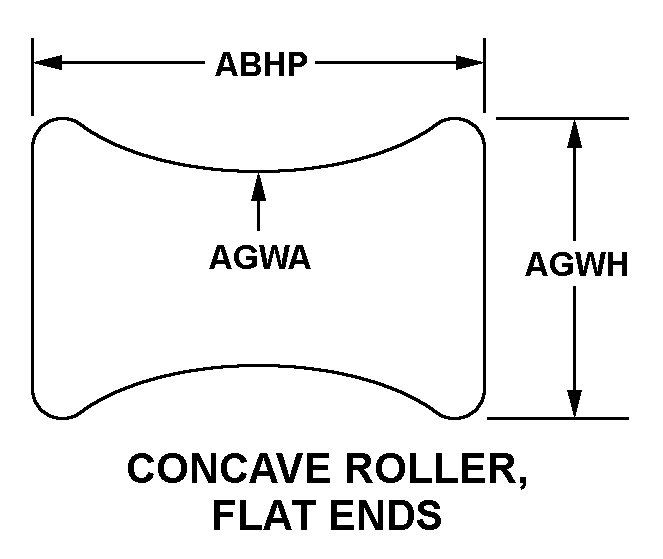

CONCAVE ROLLER, FLAT ENDS
Cross Reference | NSN 3110-00-844-1780
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P3804 | 14180 | LULL CORP |
Technical Data | NSN 3110-00-844-1780
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CONCAVE ROLLER, FLAT ENDS |
| OVERALL LENGTH | 2.5000 INCHES NOMINAL |
| GROOVE RADIUS | 10.0000 INCHES NOMINAL |
| ROLLING ELEMENT DIAMETER | 4.0625 INCHES NOMINAL |
