NSN 3110-00-868-1796
Part Details | BEARING RETAINING PLATE
3110-00-868-1796 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Alternate Parts: 521934, 521934, 521934, 521934, 521934, 3110-00-868-1796, 00-868-1796, 3110008681796, 008681796
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1960 | 00-868-1796 | 22293 ( PLATE, RETAINING, BEARING ) |
REFERENCE DRAWINGS & PICTURES

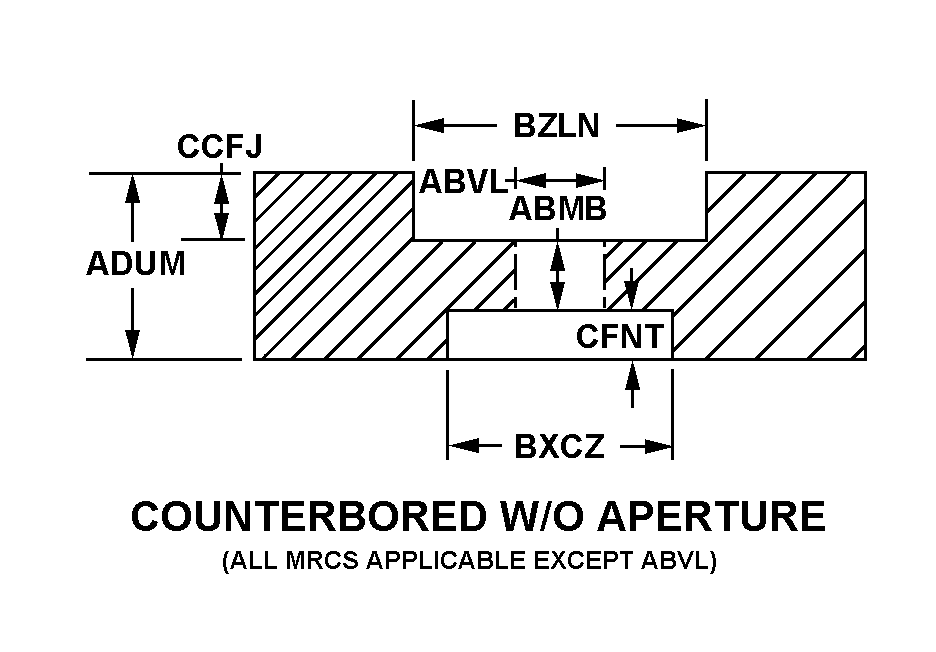

COUNTERBORED W/O APERTURE
VERTICAL CENTERLINE
ROUND
Cross Reference | NSN 3110-00-868-1796
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 521934 | 5A628 | DELL MANUFACTURING CO., INC. |
| 521934 | 53375 | SSANFORD TOOL & DESIGN INC |
| 521934 | 31340 | THE BIRKEN MANUFACTURING COMPANY |
| 521934 | 79043 | THE UNITED TOOL AND DIE COMPANY |
| 521934 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 3110-00-868-1796
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND |
| CROSS-SECTIONAL SHAPE STYLE | COUNTERBORED W/O APERTURE |
| MINOR THICKNESS | 1.3890 INCHES NOMINAL |
| BODY DIAMETER | 5.1190 INCHES MINIMUM AND 5.1210 INCHES MAXIMUM |
| BODY THICKNESS | 0.1150 INCHES MINIMUM AND 0.1350 INCHES MAXIMUM |
| OVERALL THICKNESS | 1.3910 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.2760 INCHES MINIMUM AND 0.2860 INCHES MAXIMUM |
| MOUNTING HOLE ARRANGEMENT STYLE | 4 VERTICAL CENTERLINE |
| FIRST BOLT CIRCLE HOLE QUANTITY | 3 |
| SECOND BOLT CIRCLE HOLE QUANTITY | 12 |
| FIRST BOLT CIRCLE DIAMETER | 3.9365 INCHES NOMINAL |
| SECOND BOLT CIRCLE DIAMETER | 6.1000 INCHES NOMINAL |
| SPECIAL FEATURES | SCALLOPED ON OD; ADDITIONAL 2 HOLES 0.2495 IN. MIN TO 0.2505 IN. MAX,1 HOLE 0.2760 IN. MIN TO 0.2860 IN. MAX |
| CRITICALITY CODE JUSTIFICATION | FEAT |
