NSN 3110-00-871-7637
Part Details | THRUST ROLLER BEARING
3110-00-871-7637 An antifriction bearing having a roller rolling element, designed to resist axial thrust, or to support an axial load.
Alternate Parts: 297099, 3110-00-871-7637, 00-871-7637, 3110008717637, 008717637
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | NOV 10, 1967 | 00-871-7637 | 00020 ( BEARING, ROLLER, THRUST ) |
REFERENCE DRAWINGS & PICTURES

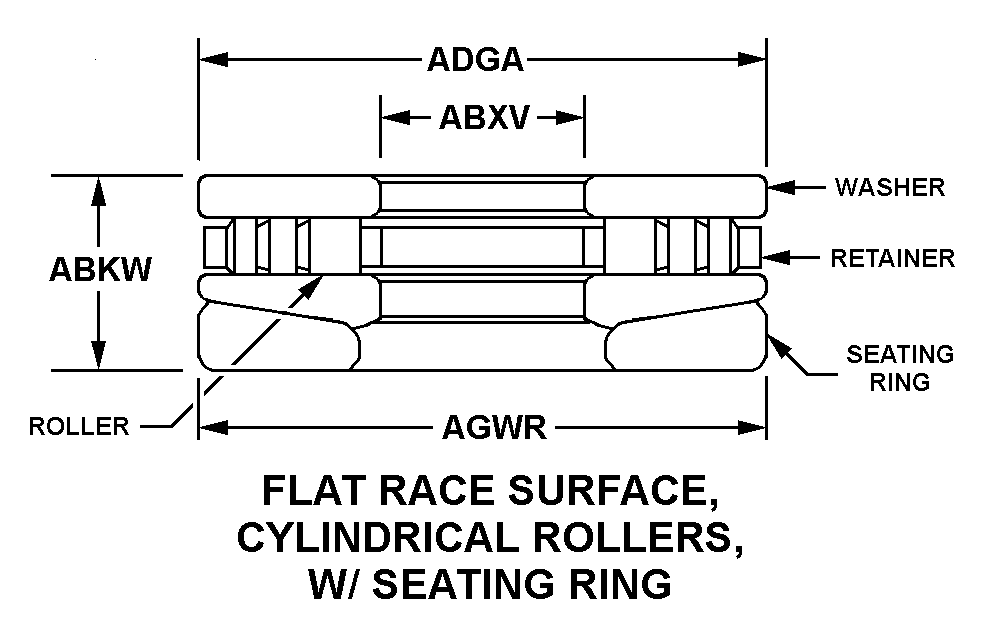

FLAT RACE SURFACE, CYLINDRICAL ROLLERS, W/SEATING RING
Cross Reference | NSN 3110-00-871-7637
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 297099 | 62983 | EATON AEROSPACE LLC |
Technical Data | NSN 3110-00-871-7637
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FLAT RACE SURFACE, CYLINDRICAL ROLLERS, W/SEATING RING |
| OVERALL HEIGHT | 1.0510 INCHES MINIMUM AND 1.0640 INCHES MAXIMUM |
| BORE DIAMETER | 1.1811 INCHES MINIMUM AND 1.1814 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.8130 INCHES MINIMUM |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | EXTERNAL |
| THRUST DIRECTIONAL CAPABILITY DESIGNATION | SINGLE |
| SPECIAL FEATURES | BANDED OD |
