NSN 3110-00-891-9972
Part Details | CYLINDRICAL ROLLER BEARING
3110-00-891-9972 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: 2050401051, 205-040-105-1, 205040105, 205-040-105, 205040105, 205-040-105, R108KE2X, 205040105, 205-040-105, 3110-00-891-9972, 00-891-9972, 3110008919972, 008919972
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1960 | 00-891-9972 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
REFERENCE DRAWINGS & PICTURES

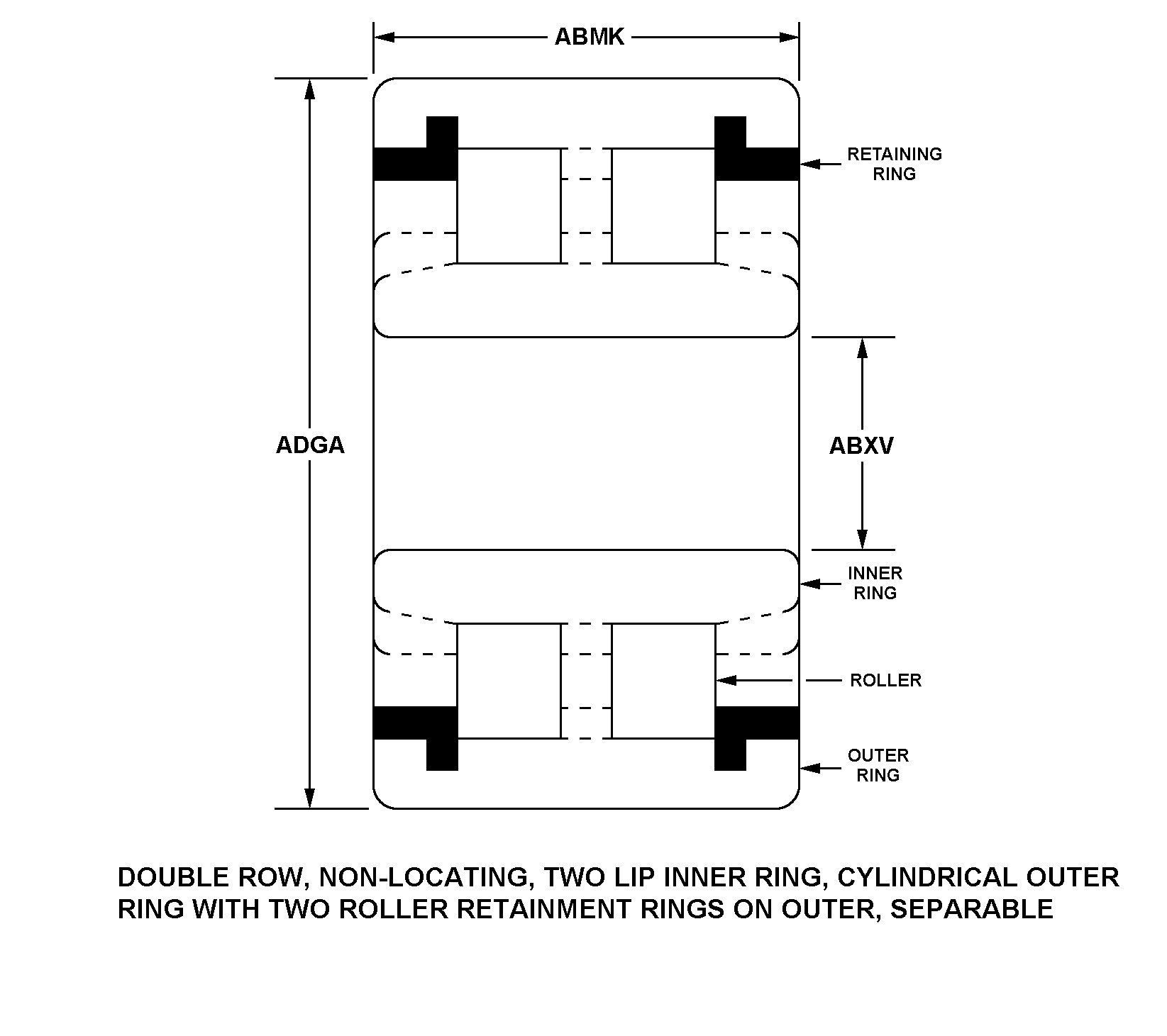

DOUBLE ROW, NON-LOCATING, TWO LIP INNER RING, CYLINDRICAL OUTER RING WITH TWO ROLLER RETAINMENT RINGS ON OUTER, SEPARABLE
Cross Reference | NSN 3110-00-891-9972
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 205-040-105-1 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
| 205-040-105 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
| 205-040-105 | 38443 | SKF USA INC.DBA SKF AEROENGINE NORTH AMERICA |
| R108KE2X | 38443 | SKF USA INC.DBA SKF AEROENGINE NORTH AMERICA |
| 205-040-105 | 81996 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 3110-00-891-9972
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE ROW, NON-LOCATING, TWO LIP INNER RING, CYLINDRICAL OUTER RING WITH TWO ROLLER RETAINMENT RINGS ON OUTER, SEPARABLE |
| OVERALL WIDTH | 0.5856 INCHES MINIMUM AND 0.5906 INCHES MAXIMUM |
| BORE DIAMETER | 1.7717 INCHES MINIMUM AND 1.7722 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.6768 INCHES MINIMUM AND 2.6772 INCHES MAXIMUM |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| SPECIAL FEATURES | BEARING SUITABLE FOR OPERATION FROM M 65 TO P 300 DEG F,0.00008 IN. MAXVARIATION IN DIA OF ROLLERS |
| TEST DATA DOCUMENT | A38443-ES105$A38443-ES109A |
