NSN 3110-00-911-7262
Part Details | BEARING RETAINER AND ROLLERS
3110-00-911-7262 An assembled inner component of a roller bearing, consisting of a frame or inclosure which spaces and retains the rolling elements of a BEARING, ROLLER (as modified) and the rollers which are the rolling elements in a BEARING, ROLLER (as modified).
Alternate Parts: HD2031T, HD2-031T, 3110-00-911-7262, 00-911-7262, 3110009117262, 009117262
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1960 | 00-911-7262 | 00035 ( RETAINER AND ROLLERS, BEARING ) |
REFERENCE DRAWINGS & PICTURES

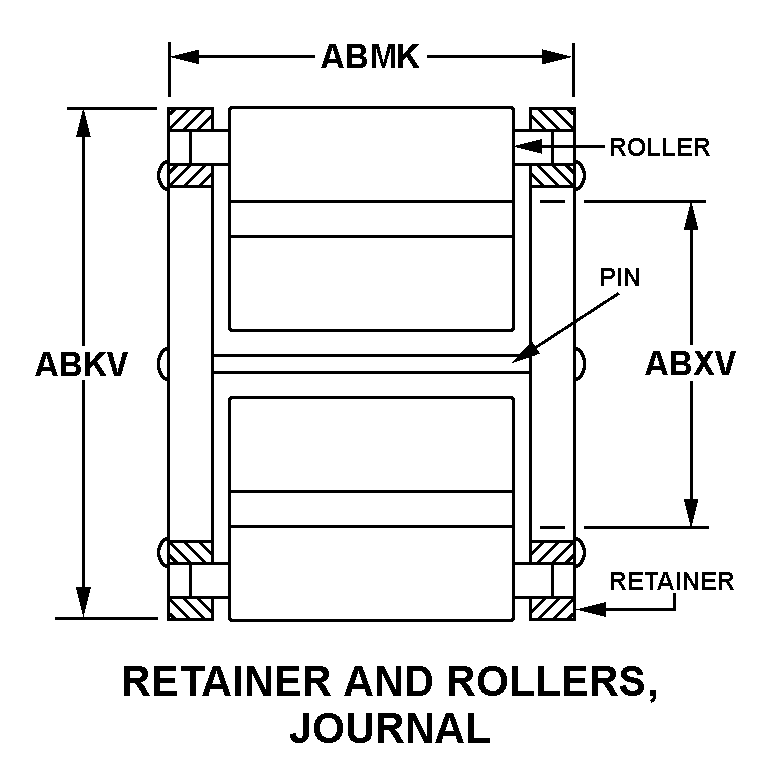

RETAINER AND ROLLERS, JOURNAL
Cross Reference | NSN 3110-00-911-7262
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HD2-031T | 97384 | AAI CORPORATIONDBA TEXTRON SYSTEMS |
Technical Data | NSN 3110-00-911-7262
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RETAINER AND ROLLERS, JOURNAL |
| OUTSIDE DIAMETER | 2.8750 INCHES NOMINAL |
| OVERALL WIDTH | 1.8750 INCHES NOMINAL |
| BORE DIAMETER | 1.7500 INCHES NOMINAL |
| RETAINER FABRICATION METHOD | PRESSED |
| RETAINER PIECE QUANTITY | 2 |
