NSN 3110-00-917-8978
Part Details | THRUST BALL BEARING
3110-00-917-8978 An antifriction bearing having a ball rolling element, designed to resist axial thrust, or to support an axial load. Excludes BEARING, BALL, PIVOT.
Alternate Parts: A1851T, A1851T, 3110-00-917-8978, 00-917-8978, 3110009178978, 009178978
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JUL 27, 1966 | 00-917-8978 | 00019 ( BEARING, BALL, THRUST ) |
REFERENCE DRAWINGS & PICTURES

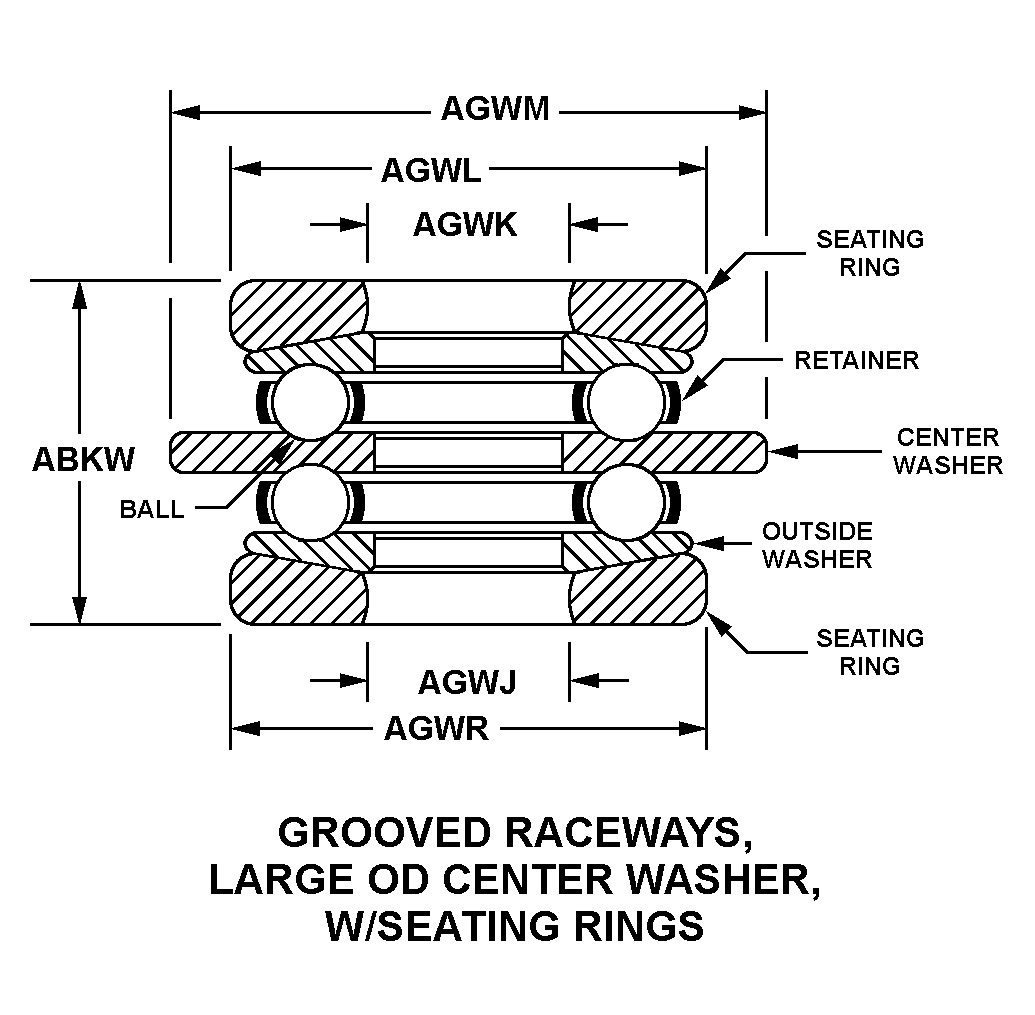

GROOVED RACEWAYS, LARGE OD CENTER WASHER, W/SEATING RINGS
Cross Reference | NSN 3110-00-917-8978
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A1851T | 24692 | HARTZELL PROPELLER INC. |
| A1851T | FA1D6 | TECHNIC AVIATION |
Technical Data | NSN 3110-00-917-8978
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | GROOVED RACEWAYS, LARGE OD CENTER WASHER, W/SEATING RINGS |
| OVERALL HEIGHT | 1.0570 INCHES MINIMUM AND 1.0670 INCHES MAXIMUM |
| BORE SMALLEST DIAMETER | 2.7950 INCHES MINIMUM AND 2.8050 INCHES MAXIMUM |
| LARGEST BORE DIAMETER | 2.8700 INCHES MINIMUM AND 2.8800 INCHES MAXIMUM |
| SMALLEST OUTSIDE DIAMETER | 3.9800 INCHES MINIMUM AND 3.9810 INCHES MAXIMUM |
| LARGEST OUTSIDE DIAMETER | 4.1860 INCHES MINIMUM AND 4.1870 INCHES MAXIMUM |
| SURFACE FINISH | GROUND |
| ALIGNMENT TYPE | RIGID |
| THRUST DIRECTIONAL CAPABILITY DESIGNATION | SINGLE |
| SPECIAL FEATURES | ID AND OD FRACTURED ON CENTERLINE AND NOTCHED W/60 DEG ANGLE |
