NSN 3110-00-923-4715
Part Details | NEEDLE ROLLER BEARING
3110-00-923-4715 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Alternate Parts: GR16SS, 3110-00-923-4715, 00-923-4715, 3110009234715, 009234715
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 09, 1966 | 00-923-4715 | 00051 ( BEARING, ROLLER, NEEDLE ) |
REFERENCE DRAWINGS & PICTURES

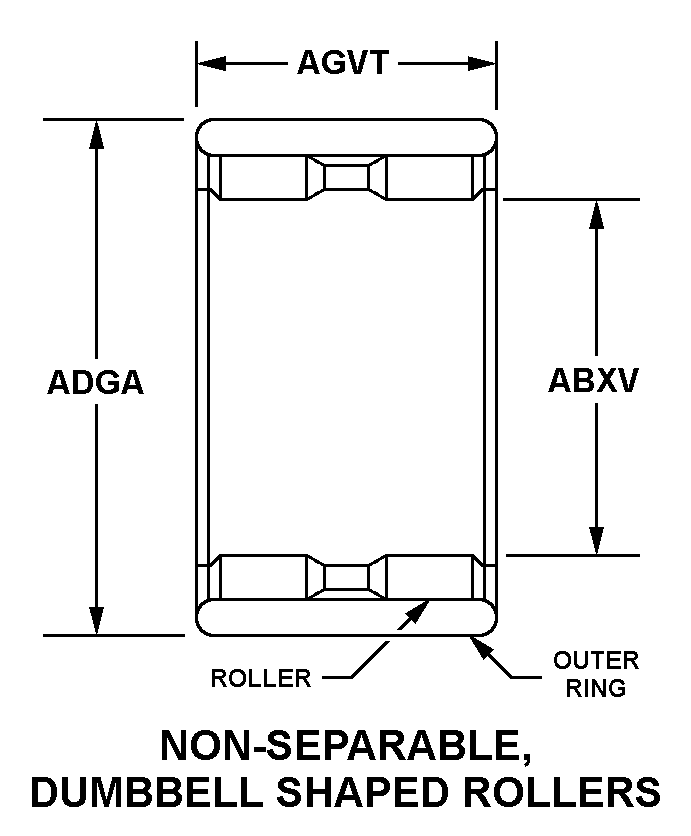

NON-SEPARABLE, DUMBBELL SHAPED ROLLERS
Cross Reference | NSN 3110-00-923-4715
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GR16SS | 92563 | MCGILL MANUFACTURING COMPANY, INC. |
Technical Data | NSN 3110-00-923-4715
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | NON-SEPARABLE, DUMBBELL SHAPED ROLLERS |
| BORE DIAMETER | 1.0000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.5000 INCHES NOMINAL |
| OUTER RING WIDTH | 1.0000 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS |
| SURFACE FINISH | GROUND |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | LIPS TURNED INWARDLY |
| ALIGNMENT TYPE | RIGID |
| FEATURES PROVIDED | LUBRICATION HOLE AND LUBRICATION GROOVE |
