NSN 3110-00-933-6437
Part Details | BEARING RETAINING PLATE
3110-00-933-6437 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Alternate Parts: 11598500, 3110-00-933-6437, 00-933-6437, 3110009336437, 009336437
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | FEB 06, 1987 | 00-933-6437 | 22293 ( PLATE, RETAINING, BEARING ) |
REFERENCE DRAWINGS & PICTURES

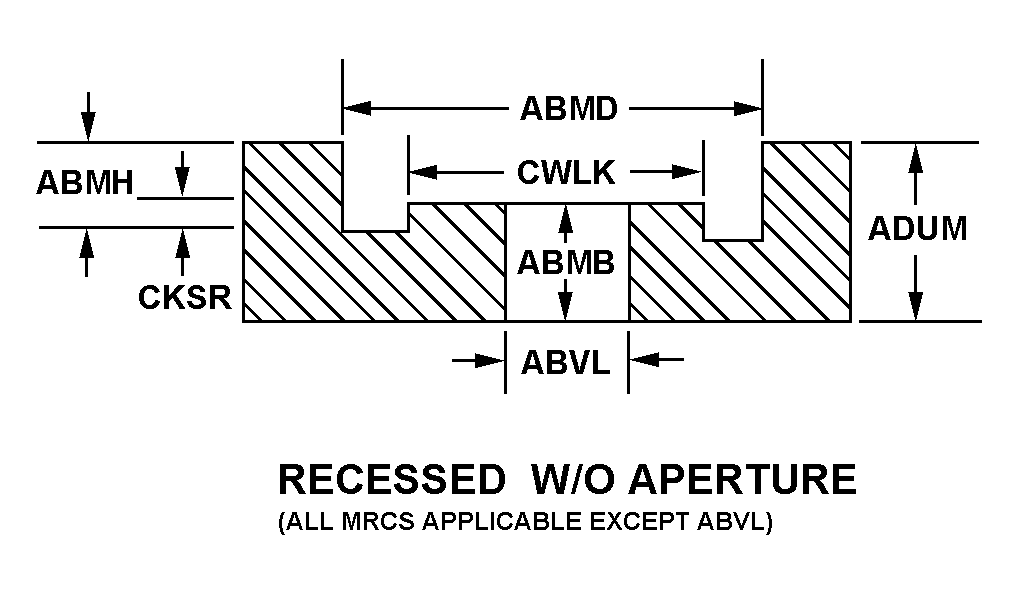

RECESSED W/O APERTURE
VERTICAL CENTERLINE

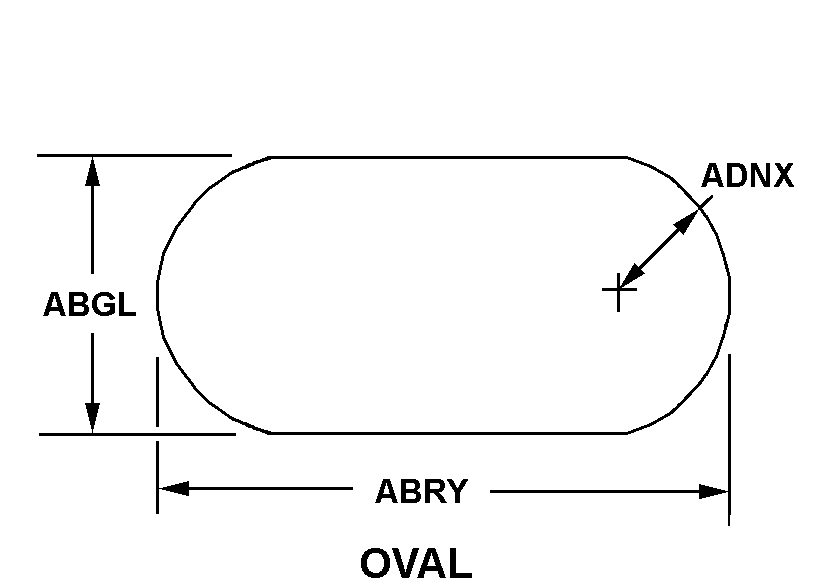

OVAL
Cross Reference | NSN 3110-00-933-6437
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11598500 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 3110-00-933-6437
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OVAL |
| WIDTH | 0.625 INCHES NOMINAL |
| LENGTH | 5.875 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | RECESSED W/O APERTURE |
| MINOR THICKNESS | 0.156 INCHES MINIMUM AND 0.218 INCHES MAXIMUM |
| RECESS DEPTH | 0.250 INCHES NOMINAL |
| BODY DIAMETER | 3.500 INCHES NOMINAL |
| APERTURE DIAMETER | 2.875 INCHES NOMINAL |
| BODY THICKNESS | 0.344 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
| OVERALL THICKNESS | 0.625 INCHES NOMINAL |
| RECESS DIAMETER | 3.750 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.312 INCHES NOMINAL |
| MOUNTING HOLE ARRANGEMENT STYLE | 5 VERTICAL CENTERLINE |
| BOLT CIRCLE HOLE QUANTITY | 6 |
| MOUNTING BOLT CIRCLE DIAMETER | 0.312 INCHES MINIMUM AND 0.688 INCHES MAXIMUM |
| END ITEM IDENTIFICATION | 2350-01-136-8744 |
