NSN 3110-00-933-7364
Part Details | ANNULAR BALL BEARING
3110-00-933-7364 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 11602332, 3110-00-933-7364, 00-933-7364, 3110009337364, 009337364
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | SEP 25, 1966 | 00-933-7364 | 00014 ( BEARING, BALL, ANNULAR ) |

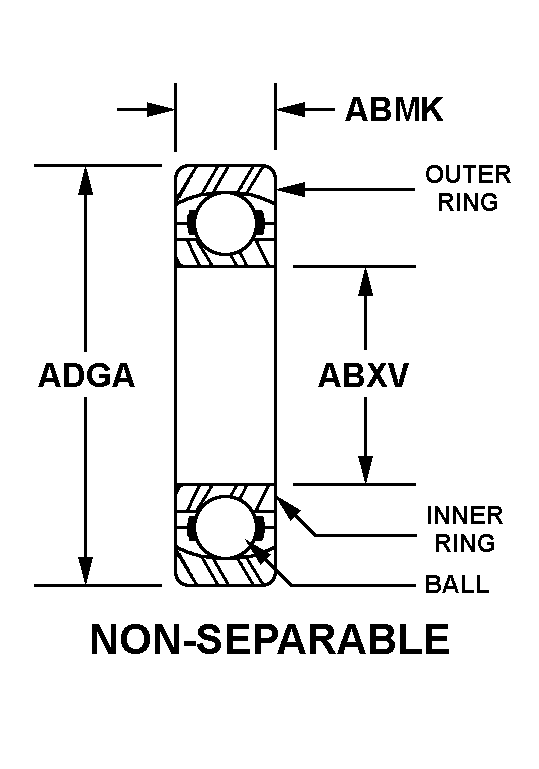

REFERENCE DRAWINGS & PICTURES
NON-SEPARABLE
Cross Reference | NSN 3110-00-933-7364
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11602332 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 3110-00-933-7364
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | NON-SEPARABLE |
| OVERALL WIDTH | 0.7330 INCHES MINIMUM AND 0.7480 INCHES MAXIMUM |
| BORE DIAMETER | 1.7712 INCHES MINIMUM AND 1.7717 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 3.3460 INCHES MINIMUM AND 3.3520 INCHES MAXIMUM |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| LOAD DIRECTION | RADIAL |
