NSN 3110-00-940-9523
Part Details | BEARING RETAINING PLATE
3110-00-940-9523 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Alternate Parts: 11699483, 3110-00-940-9523, 00-940-9523, 3110009409523, 009409523
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | DEC 12, 1965 | 00-940-9523 | 22293 ( PLATE, RETAINING, BEARING ) |

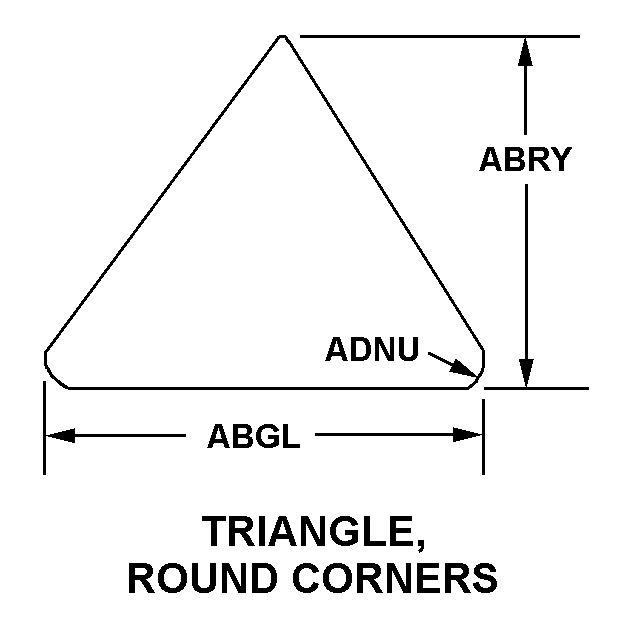

REFERENCE DRAWINGS & PICTURES
VERTICAL CENTERLINE
TRIANGLE, ROUND CORNERS
Cross Reference | NSN 3110-00-940-9523
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11699483 | 19200 | US ARMY ARDEC RDECOM |
Technical Data | NSN 3110-00-940-9523
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TRIANGLE, ROUND CORNERS |
| WIDTH | 1.656 INCHES NOMINAL |
| LENGTH | 1.656 INCHES NOMINAL |
| CORNER RADIUS | 0.015 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.179 INCHES NOMINAL |
| MOUNTING HOLE ARRANGEMENT STYLE | 0 VERTICAL CENTERLINE |
| DISTANCE FROM VERTICAL CENTERLINE TO CENTER OF RIGHT HOLE | 0.513 INCHES NOMINAL |
| DISTANCE FROM HORIZONTAL CENTERLINE TO CENTER OF RIGHT HOLE | 0.296 INCHES NOMINAL |
| DISTANCE BETWEEN HOLE CENTERS ALONG BASE | 1.026 INCHES NOMINAL |
| DISTANCE BETWEEN HOLE CENTERS ALONG HEIGHT | 0.889 INCHES NOMINAL |
| SPECIAL FEATURES | SHAPE,SPECIAL;THICKNESS,0.070 IN.NOM;RAISED SURFACE DIA,0.749 IN.NOM;RAISED SURFACE HT,0.396 IN.NOM;APERTURE SHAPE,ROUND;APERTURE DIA,0.555 IN.NOM;APERTURE TYPE,COUNTERBORED;COUNTERBORE DEPTH,0.394 IN.NOM;LESSER COUNTERBORE,0.624 IN.NOM BY 0.208 IN.NOM DEPTH |
| FSC APPLICATION DATA | MOUNT,MACHINE GUN,7.62MM |
