NSN 3120-00-293-9764
Part Details | THRUST WASHER BEARING
3120-00-293-9764 An item of any peripheral shape usually having one flat or spherical surface and a centrally located hole. It is designed for applications involving moving (kinetic) loads. Except for items fabricated from bearing quality synthetic (plastic) or composed of multilayer material, one bearing surface must either have a specific surface finish designation of 32 microinch (0.8 micrometre) or less, arithmetical average (aa) (arithmetic mean deviation) or one of the following conditions: be lapped or ground; have visible or detectable means of lubrication; grooves, indentations; or self-lubrication. The thickness must not exceed 25 percent of the outside diameter of the shortest distance between peripheral flats (when thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance). Excludes straight, tubular (without flange) items having a bearing surface(s) parallel to the axis of the bore only. See also WASHER, FLAT and SPACER, SLEEVE.
Alternate Parts: 6334, 4415H23, 85339H, 3120-00-293-9764, 00-293-9764, 3120002939764, 002939764
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-293-9764 | 13211 ( BEARING, WASHER, THRUST ) |
REFERENCE DRAWINGS & PICTURES
RECTANGULAR

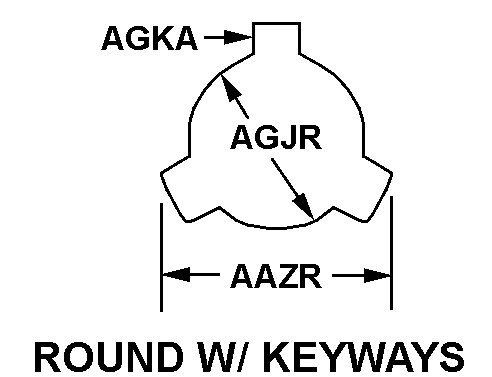

ROUND W/KEYWAYS
ROUND
Cross Reference | NSN 3120-00-293-9764
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6334 | 52304 | DANA COMMERCIAL VEHICLE PRODUCTS,LLC |
| 4415H23 | 89619 | MACK TRUCKS, INC.DBA MACUNGIE OPERATIONS |
| 85339H | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
Technical Data | NSN 3120-00-293-9764
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND |
| OUTSIDE DIAMETER | 2.4950 INCHES MINIMUM AND 2.5000 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | RECTANGULAR |
| OVERALL THICKNESS | 0.2580 INCHES MINIMUM AND 0.2600 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | ROUND W/KEYWAYS |
| MAJOR DIAMETER | 1.9000 INCHES MINIMUM AND 1.9100 INCHES MAXIMUM |
| MINOR DIAMETER | 1.7020 INCHES MINIMUM AND 1.7070 INCHES MAXIMUM |
| CENTER HOLE KEYWAY QUANTITY | 10 |
| SURFACE CONDITION | GROUND |
| SPECIAL FEATURES | ONE 0.250 IN. NOTCH ON OD PARALLEL W BORE CENTRALLY LOCATED BETWEEN KEYWAYS |
