NSN 3120-00-303-7759
Part Details | SLEEVE BEARING HALF
3120-00-303-7759 A half of a two-piece split type BEARING, SLEEVE.
Alternate Parts: 530058, 3120-00-303-7759, 00-303-7759, 3120003037759, 003037759
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-303-7759 | 22210 ( BEARING HALF, SLEEVE ) |
REFERENCE DRAWINGS & PICTURES

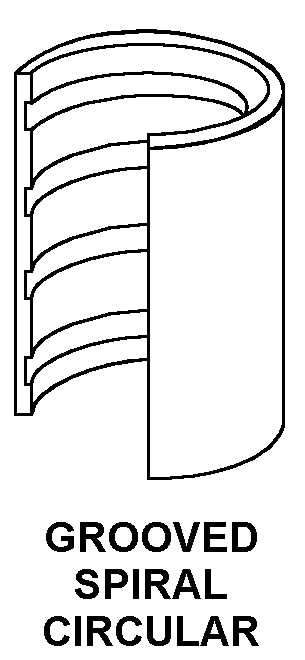

GROOVED SPIRAL CIRCULAR
HALF SLEEVE, PLAIN, NO OUTSIDE FLANGES
Cross Reference | NSN 3120-00-303-7759
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 530058 | 28839 | TELEDYNE INDUSTRIES INCTELEDYNE POWER SYSTEMS DIV |
Technical Data | NSN 3120-00-303-7759
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HALF SLEEVE, PLAIN, NO OUTSIDE FLANGES |
| OVERALL LENGTH | 2.7840 INCHES MINIMUM AND 2.7940 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 2.0615 INCHES MINIMUM AND 2.0625 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 1.8720 INCHES MINIMUM AND 1.8730 INCHES MAXIMUM |
| LOCKING LUG HEIGHT | 0.0500 INCHES MINIMUM AND 0.0600 INCHES MAXIMUM |
| LOCKING LUG LENGTH | 0.2180 INCHES NOMINAL |
| LOCKING LUG WIDTH | 0.3620 INCHES MINIMUM AND 0.3670 INCHES MAXIMUM |
| DISTANCE FROM LUG END TO END OF BEARING | 0.4687 INCHES NOMINAL |
| ANTIROTATION/LUBRICATION TYPE AND QUANTITY | 2 HOLE |
| HOLE SPACING ANGLE | 45.0 DEGREES NOMINAL |
| LUBRICANT ACCOMMODATION STYLE | GROOVED SPIRAL CIRCULAR |
