NSN 3120-00-332-3770
Part Details | ROD END PLAIN BEARING
3120-00-332-3770 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Alternate Parts: 37W430213, 37W43021-3, 3120-00-332-3770, 00-332-3770, 3120003323770, 003323770
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-332-3770 | 13209 ( BEARING, PLAIN, ROD END ) |
REFERENCE DRAWINGS & PICTURES
HOLLOW, UNTHREADED

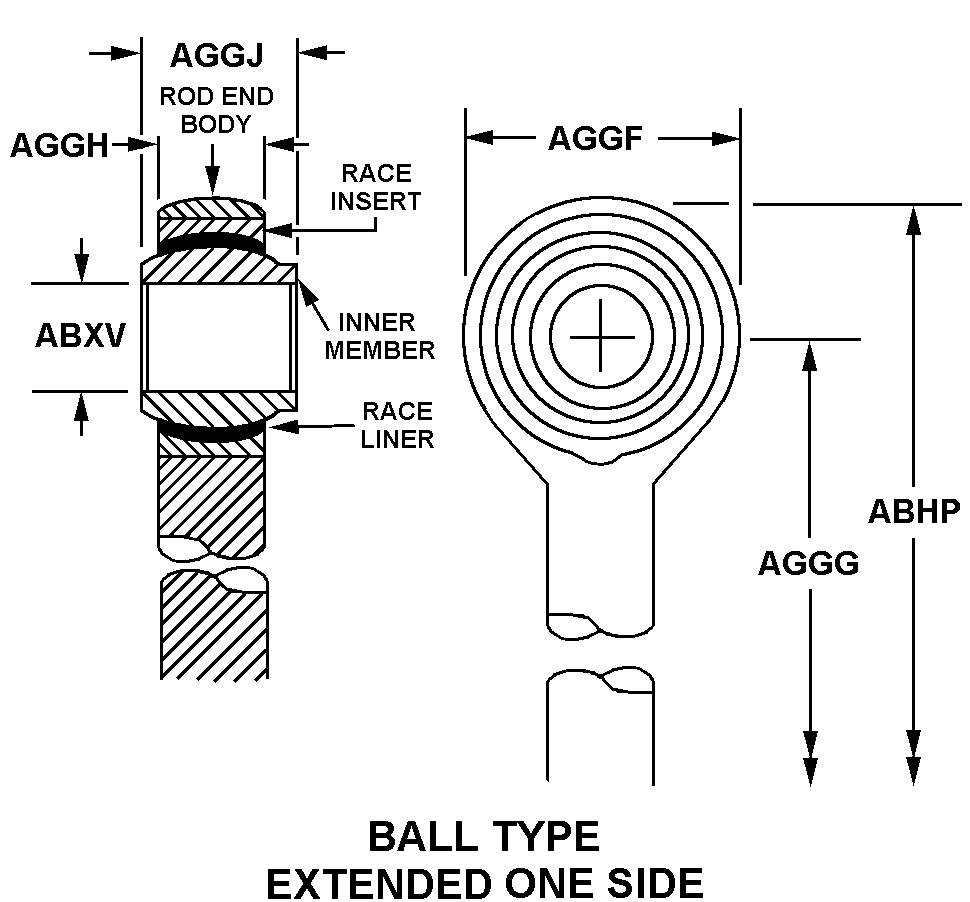

BALL TYPE EXTENDED ONE SIDE
Cross Reference | NSN 3120-00-332-3770
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 37W43021-3 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
Technical Data | NSN 3120-00-332-3770
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BALL TYPE EXTENDED ONE SIDE |
| OVERALL LENGTH | 3.6200 INCHES NOMINAL |
| OUTER MEMBER OUTSIDE DIAMETER | 1.3600 INCHES NOMINAL |
| BORE CENTER TO SHANK END DISTANCE | 2.9400 INCHES NOMINAL |
| OUTER MEMBER WIDTH | 0.3660 INCHES NOMINAL |
| SHANK END TO SHOULDER LENGTH | 2.2600 INCHES NOMINAL |
| SHANK STYLE | HOLLOW, UNTHREADED |
| SHANK INSIDE DIAMETER | 0.4960 INCHES NOMINAL |
| SHANK HOLE LENGTH | 1.5000 INCHES NOMINAL |
| FEATURES PROVIDED | EXTERNAL LUBRICATION FITTING AND SCREW PLUG CLOSURE FITTING |
