NSN 3120-00-374-9735
Part Details | SLEEVE BEARING HALF
3120-00-374-9735 A half of a two-piece split type BEARING, SLEEVE.
Alternate Parts: 220340B, 220296B, 220340B, 220296B, MS139901, MS13990-1, 3120-00-374-9735, 00-374-9735, 3120003749735, 003749735
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-374-9735 | 22210 ( BEARING HALF, SLEEVE ) |
REFERENCE DRAWINGS & PICTURES
GROOVED CIRCULAR

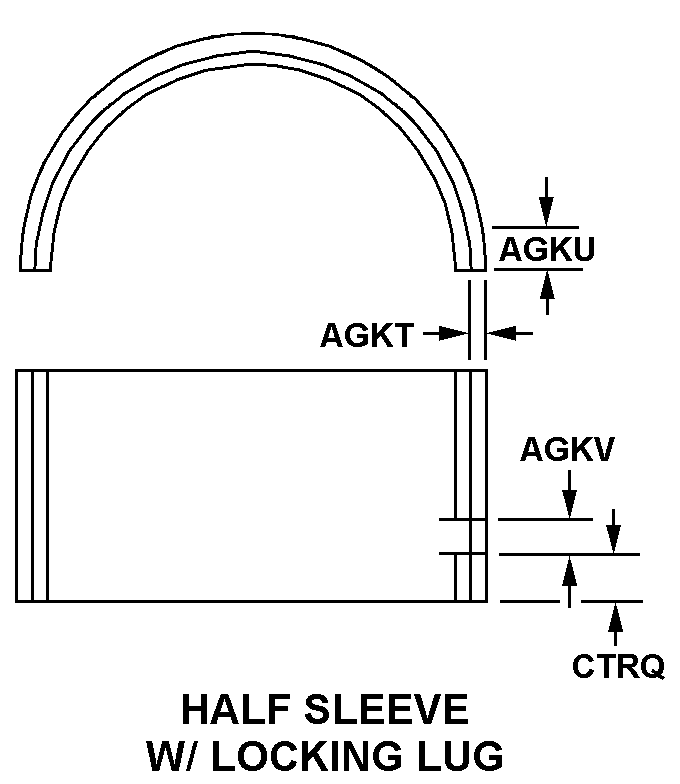

HALF SLEEVE W/LOCKING LUG
Cross Reference | NSN 3120-00-374-9735
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 220340B | 1ML14 | BRINKLEY TECHNOLOGY GROUP, LLCDBA HERCULES ENGINE COMPONENTS |
| 220296B | 1ML14 | BRINKLEY TECHNOLOGY GROUP, LLCDBA HERCULES ENGINE COMPONENTS |
| 220340B | 28265 | HERCULES ENGINE CO INC |
| 220296B | 28265 | HERCULES ENGINE CO INC |
| MS13990-1 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 3120-00-374-9735
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HALF SLEEVE W/LOCKING LUG |
| OVERALL LENGTH | 1.3700 INCHES MINIMUM AND 1.3800 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 2.2500 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 2.0594 INCHES MINIMUM AND 2.0604 INCHES MAXIMUM |
| LOCKING LUG HEIGHT | 0.0450 INCHES MINIMUM AND 0.0550 INCHES MAXIMUM |
| LOCKING LUG LENGTH | 0.1900 INCHES MINIMUM AND 0.2200 INCHES MAXIMUM |
| LOCKING LUG WIDTH | 0.1750 INCHES MINIMUM AND 0.1800 INCHES MAXIMUM |
| DISTANCE FROM LUG END TO END OF BEARING | 0.3175 INCHES MINIMUM AND 0.3250 INCHES MAXIMUM |
| ANTIROTATION/LUBRICATION TYPE AND QUANTITY | 2 HOLE |
| HOLE SPACING ANGLE | 41.0 DEGREES NOMINAL |
| LUBRICATION MATERIAL | LUBRICATING OIL |
| LUBRICANT ACCOMMODATION STYLE | GROOVED CIRCULAR |
| SURFACE GROOVE LOCATION AND QUANTITY | 1 INTERNAL |
