NSN 3120-00-410-6050
Part Details | SPHERICAL PLAIN BEARING
3120-00-410-6050 A detachable part in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. It may be divided into two or more segments of 180 degrees (3.141 radians) or less. The item has a cylindrical bore and is basically spherical in its exterior design to allow for shaft misalignment. Excludes BEARING, PLAIN, SELF-ALIGNING.
Alternate Parts: 12A48, 3120-00-410-6050, 00-410-6050, 3120004106050, 004106050
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | AUG 13, 1969 | 00-410-6050 | 13204 ( BEARING, PLAIN, SPHERICAL ) |

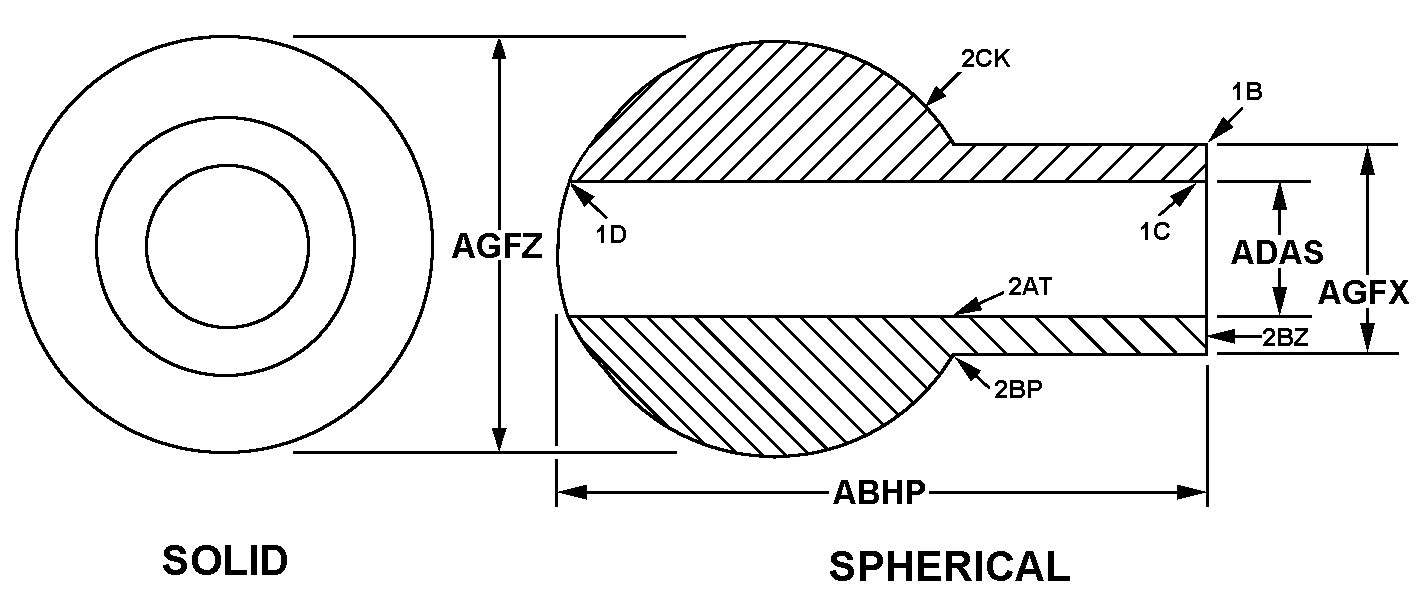

REFERENCE DRAWINGS & PICTURES
SOLID
Cross Reference | NSN 3120-00-410-6050
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12A48 | 62119 | UNIVERSAL ELECTRIC CO |
Technical Data | NSN 3120-00-410-6050
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SOLID |
| OVERALL LENGTH | 0.5000 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 0.3123 INCHES MINIMUM AND 0.3124 INCHES MAXIMUM |
| EXTENSION OUTSIDE DIAMETER | 0.6250 INCHES NOMINAL |
