NSN 3460-01-301-4629
Part Details | ABRASIVE WHEEL
3460-01-301-4629 A rigid piece of abrasive with or without mounting facilities. Items having such mounting facilities as a fixed spindle, a threaded insert, or an arbor hole are designed for mounting on a grinding machine, tool chuck or mandrel. Items without mounting facilities are designed to be secured in a wheel holder by means of spring clamps.
Alternate Parts: 49943300, 49-94-3300, 3460-01-301-4629, 01-301-4629, 3460013014629, 013014629
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | MAY 29, 1989 | 01-301-4629 | 02613 ( WHEEL, ABRASIVE ) |
REFERENCE DRAWINGS & PICTURES

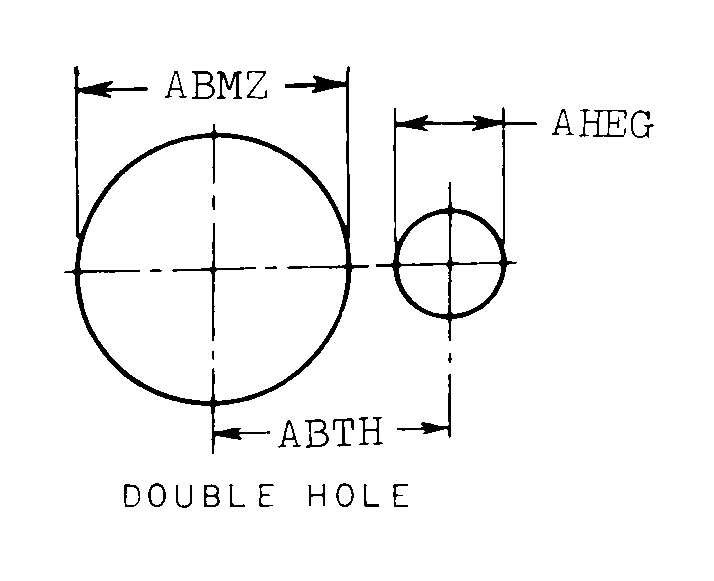

DOUBLE HOLE
SAUCER
Cross Reference | NSN 3460-01-301-4629
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 49-94-3300 | 40817 | MILWAUKEE ELECTRIC TOOL CORPORATION |
Technical Data | NSN 3460-01-301-4629
| Characteristic | Specifications |
|---|---|
| ABRASIVE MATERIAL | ALUMINUM OXIDE |
| SCREEN GRIT SIZE DESIGNATOR | 24 |
| USAGE DESIGN | AGGREGATE, HARD WORKING |
| WHEEL STYLE | 7 SAUCER |
| OVERALL THICKNESS | 0.250 INCHES NOMINAL |
| HOLE THICKNESS | 4.500 INCHES NOMINAL |
| MOUNTING METHOD | |
| MOUNTING OPENING SHAPE STYLE | DOUBLE HOLE |
| DIAMETER | 0.875 INCHES NOMINAL |
| MAXIMUM SPEED RATING IN RPM | 12500.0 |
| SPECIAL FEATURES | GRINDING WITH DEPRESSED CENTER HUB,REINFORCED TYPE 27 |
