NSN 3950-01-269-0329
Part Details | CHAIN HOIST
3950-01-269-0329 A device designed to be suspended above deck, floor or ground level having one or more revolving whelped wheels over which a chain is passed for the purpose of raising or lowering a load. May be suspended so as to travel on a fixed track.
Alternate Parts: 75019CA7, 3950-01-269-0329, 01-269-0329, 3950012690329, 012690329
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | DEC 11, 1987 | 01-269-0329 | 04587 ( HOIST, CHAIN ) |
REFERENCE DRAWINGS & PICTURES

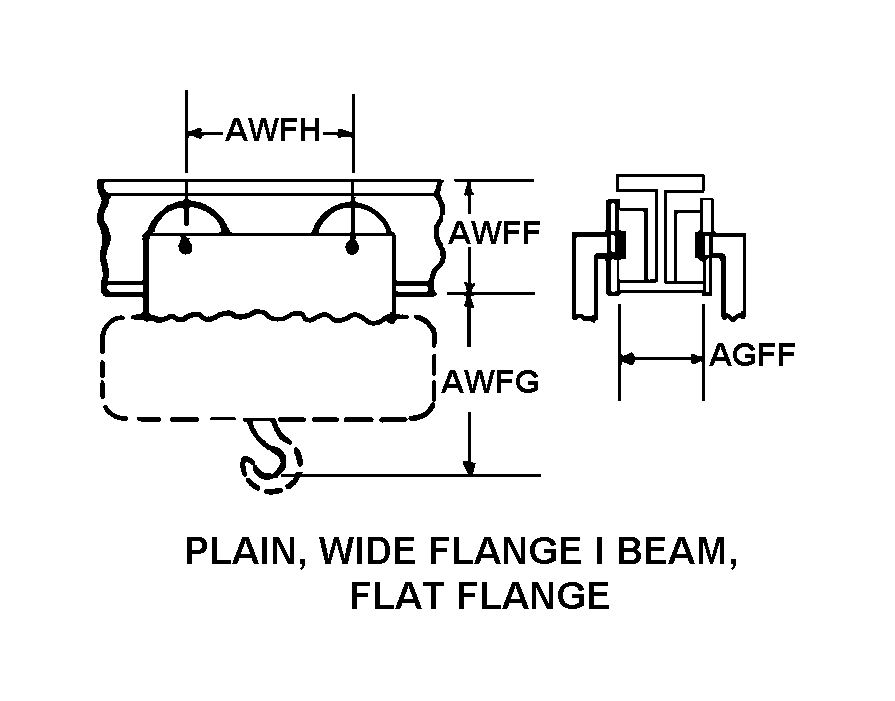

PLAIN, WIDE FLANGE I BEAM, FLAT FLANGE
Cross Reference | NSN 3950-01-269-0329
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 75019CA7 | 24047 | COOPER INDUSTRIES INCDBA COOPER TOOLS |
Technical Data | NSN 3950-01-269-0329
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | G |
| CHAIN TYPE | ROLLER LINK |
| HOOK QUANTITY | 2 |
| LOAD ELEMENT QUANTITY PER HOOK | 1 |
| SUSPENSION MOUNTING METHOD | TROLLEY |
| MOUNTING POSITION | ANY ACCEPTABLE |
| PRIME MOVER TYPE | PNEUMATIC MOTOR |
| PRIME MOVER QUANTITY | 2 |
| COOLING METHOD | ANY ACCEPTABLE |
| POWER DRIVE OPERATING PRESSURE | 90.0 POUNDS PER SQUARE INCH GAGE |
| TRAVEL RATE PER MINUTE | 19.0 FEET |
| TROLLEY SUSPENSION STYLE | PLAIN, WIDE FLANGE I BEAM, FLAT FLANGE |
| TROLLEY TYPE | P AIR |
| MAXIMUM TRAVERSING SPEED | 49.0 FEET PER MINUTE |
| MAXIMUM LIFT HEIGHT | 10.0 FEET |
| MAXIMUM LOAD RATING | 1000.0 POUNDS |
| SPECIAL FEATURES | W/STEEL SPROCKET AND HAND CRANK |
