NSN 3950-01-297-4714
Part Details | CHAIN HOIST
3950-01-297-4714 A device designed to be suspended above deck, floor or ground level having one or more revolving whelped wheels over which a chain is passed for the purpose of raising or lowering a load. May be suspended so as to travel on a fixed track.
Alternate Parts: 429497, 3950-01-297-4714, 01-297-4714, 3950012974714, 012974714
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | APR 04, 1989 | 01-297-4714 | 04587 ( HOIST, CHAIN ) |
REFERENCE DRAWINGS & PICTURES

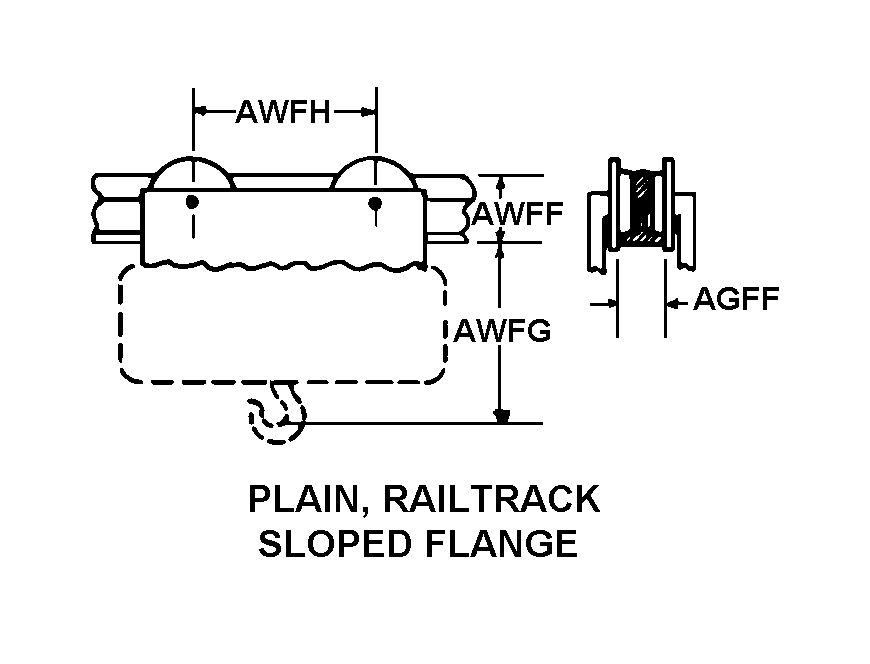

PLAIN, RAILTRACK SLOPED FLANGE
Cross Reference | NSN 3950-01-297-4714
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 429497 | 46964 | LIFT-TECH INTL INCCRANE AND HOIST OPNS |
Technical Data | NSN 3950-01-297-4714
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | P |
| HOOK QUANTITY | 1 |
| SUSPENSION MOUNTING METHOD | TROLLEY |
| MECHANICAL ADVANTAGE METHOD | HAND WHEEL |
| TROLLEY SUSPENSION STYLE | PLAIN, RAILTRACK SLOPED FLANGE |
| TROLLEY TYPE | Q AIR |
| MAXIMUM LIFT HEIGHT | 12.0 FEET |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MATERIAL WILL BE IN ACCORDANCE WITH SHIPS PARTS CONTROL CENTER ACTIVITY HX QUALITY CONTROL,MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
