NSN 4010-00-142-6342
Part Details | WIRE ROPE
4010-00-142-6342 Three or more metallic strands twisted helically together around a fiber, metallic, or combination wire and fiber core. Excludes items rated for electric current carrying applications.
Alternate Parts: RRW410I36, RRW410-I36, RRW410, RRW410136, RR-W-410-136, 4010-00-142-6342, 00-142-6342, 4010001426342, 001426342
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JAN 31, 1969 | 00-142-6342 | 30295 ( ROPE, WIRE ) |
REFERENCE DRAWINGS & PICTURES

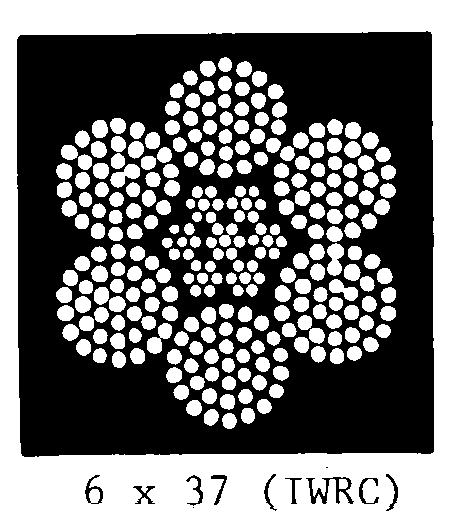

6 X 37 (IWRC)
Cross Reference | NSN 4010-00-142-6342
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RRW410-I36 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| RRW410 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| RR-W-410-136 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 4010-00-142-6342
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 6 X 37 (IWRC) |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 900.000 FEET MINIMUM |
| BREAKING STRENGTH | 79600.0 POUNDS MINIMUM |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 3 CLASS AND 6 CONSTRUCTION |
| END ITEM IDENTIFICATION | GENERAL PURPOSE |
