NSN 4010-00-174-9127
Part Details | SINGLE LEG WIRE ROPE ASSEMBLY
4010-00-174-9127 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Alternate Parts: 3683147PC71015171920, 3683-147PC7-10-15-17-19-20, 3683147PC10ASSY, 3683-147PC10ASSY, SSN5717501H1302394PC7101115, SSN571-7501H1302394PC7-10-11-15, 4010-00-174-9127, 00-174-9127, 4010001749127, 001749127
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | FEB 17, 1967 | 00-174-9127 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
REFERENCE DRAWINGS & PICTURES

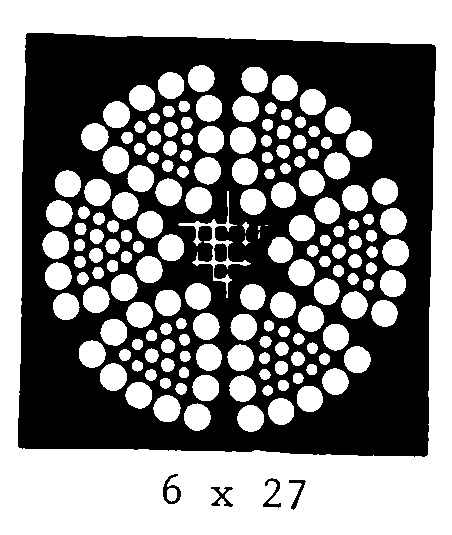

6 X 27
Cross Reference | NSN 4010-00-174-9127
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3683-147PC7-10-15-17-19-20 | 96169 | ELECTRIC BOAT CORPORATION |
| 3683-147PC10ASSY | 96169 | ELECTRIC BOAT CORPORATION |
| SSN571-7501H1302394PC7-10-11-15 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 4010-00-174-9127
| Characteristic | Specifications |
|---|---|
| CORE CONSTRUCTION | FIBER |
| STYLE DESIGNATOR | 6 X 27 |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 16.661 FEET NOMINAL |
| END CONDITIONING METHOD | SEIZED |
