NSN 4010-00-264-5069
Part Details | SINGLE LEG WIRE ROPE ASSEMBLY
4010-00-264-5069 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Alternate Parts: 13208E5016, MILW52312, 4010-00-264-5069, 00-264-5069, 4010002645069, 002645069
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JAN 01, 1963 | 00-264-5069 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
REFERENCE DRAWINGS & PICTURES

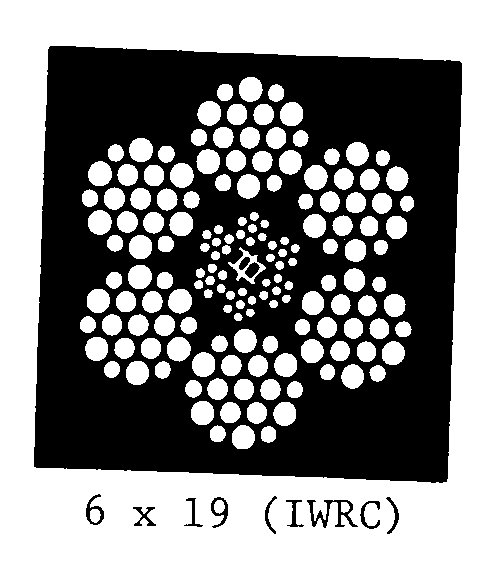

6 X 19 (IWRC)
Cross Reference | NSN 4010-00-264-5069
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13208E5016 | 97403 | CECOM LR CENTER |
| MILW52312 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 4010-00-264-5069
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 6 X 19 (IWRC) |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 750.000 FEET NOMINAL |
| END CONDITIONING METHOD | SEIZED |
| SPECIAL FEATURES | FURNISHED ON REEL |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE |
